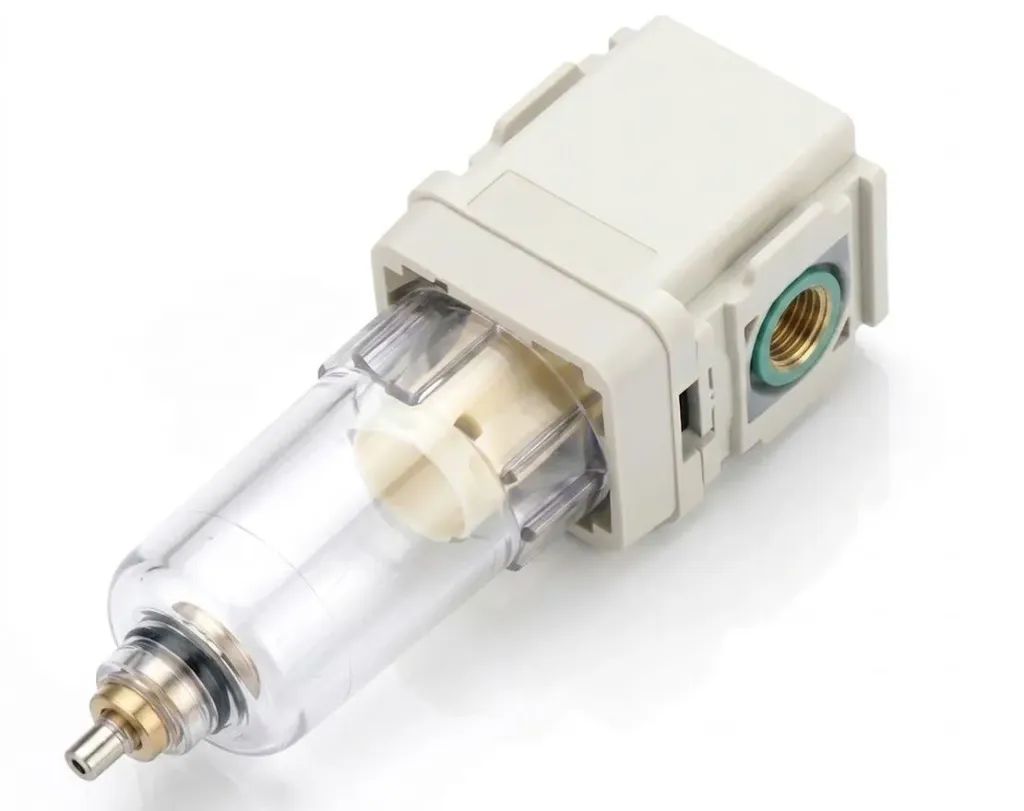

The AIRMIXS W2000-02-G1/4" Air Filter Regulatoris a space-saving, 2-in-1 air preparation unit designed for small-to-medium pneumatic control systems, automated machine lines, and compressed air tools. Featuring standard G 1/4" female thread ports in a compact 2000-series body, this unit integrates particulate filtration and precise pressure regulation into a single body, streamlining piping layout and minimizing potential leak points.
Constructed with a heavy-duty die-cast aluminum housing and a high-transparency polycarbonate bowl, it efficiently separates liquid condensate, oil droplets, scale, and rust particles from the air stream. The top adjustment knob features an ergonomic push-to-lock detent mechanism—pull up to adjust the downstream pressure, then press down to lock it securely to protect settings against machine vibration.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | W2000-02-G1/4" / W2000-02 / AW2000-02 |
Series / Size | 2000 Series (Compact) |
Component Type | Piggyback Air Filter Regulator (2-in-1 Unit) |
Port Size | G 1/4" (BSP) / NPT 1/4" |
Gauge Port Size | G 1/8" |
Filtration Rating | 5 µm (Standard) / 25 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~550 – 750 L/min |
Drain Mechanism | Manual Twist Drain / Semi-Auto Differential Drain |
Body Material | Heavy-Duty Die-Cast Aluminum Alloy |
Bowl Material | Polycarbonate (PC) |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Fluid Medium | Compressed Air / Inert Gases |
