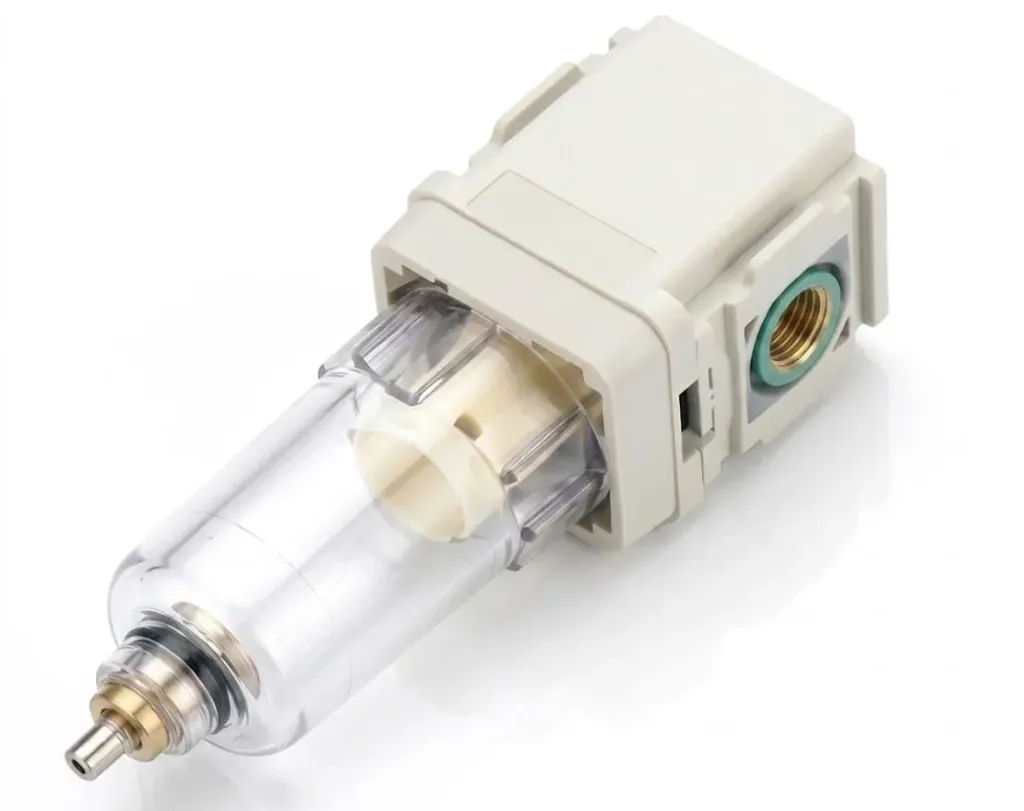

The AIRMIXS W1000-01-G1/8" Miniature Air Filter Regulator is an ultra-compact, two-in-one compressed air treatment unit engineered for micro-pneumatic circuits, medical equipment, and space-constrained instrument control panels. Connecting via G 1/8" female thread ports, this 1000-series piggyback combination unit merges filtration and precise pressure regulation into a single body to reduce overall footprint and potential leak points.
Constructed with a lightweight die-cast aluminum alloy body and a clear polycarbonate condensate bowl, it effectively extracts water droplets, particulate contaminants, and pipe scale while maintaining stable downstream operating pressure. The top adjustment knob features a push-to-lock detent mechanism to safeguard against accidental setting drift caused by operational vibration.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | W1000-01-G1/8" / W1000-01 |
Series / Size | 1000 Series (Miniature / Micro) |
Component Type | Compact Piggyback Air Filter Regulator (2-in-1 Unit) |
Port Size | G 1/8" (BSP) / NPT 1/8" |
Gauge Port Size | G 1/8" |
Filtration Rating | 5 µm (Standard) / 25 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~120 – 180 L/min |
Drain Mechanism | Manual Twist Drain / Differential Pressure Drain |
Body Material | Die-Cast Aluminum Alloy |
Bowl Material | Polycarbonate (PC) |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Fluid Medium | Compressed Air / Inert Gases |
