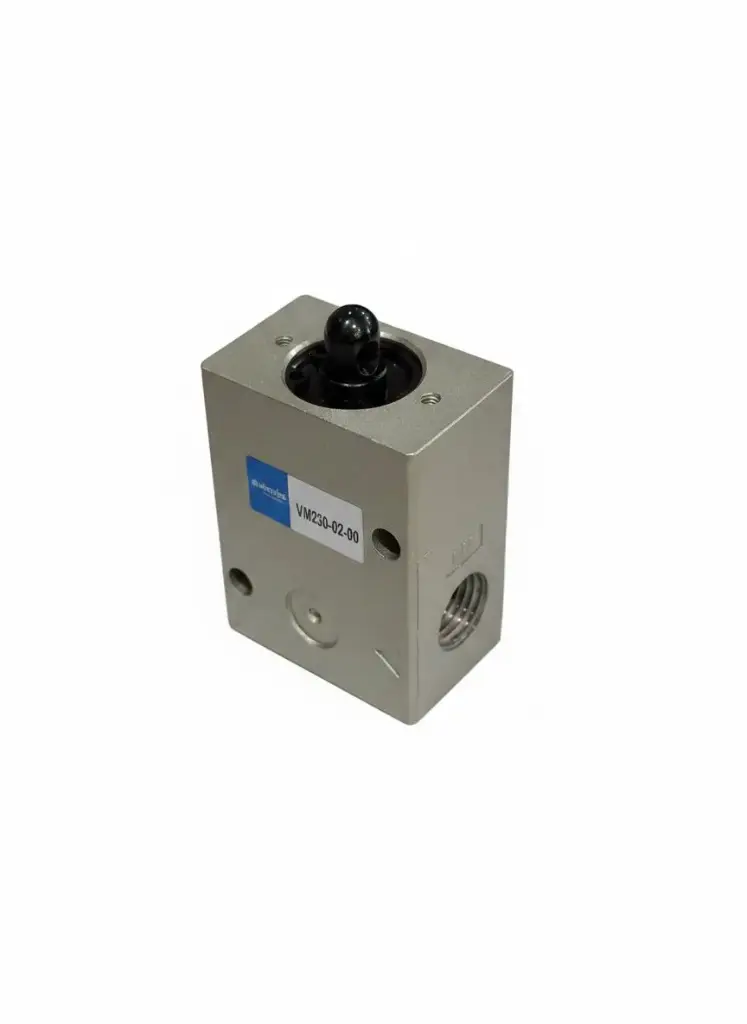

The VM230-02-00 serves as the heavy-duty mechanical core for the VM200 series. As a Basic Style valve, it features a protruding plunger that can be directly actuated by a machine component, or it can be outfitted with various heads (Mushroom, Selector, Lever, etc.) depending on the application requirements.
Feature | Specification |
|---|
Model | VM230-02-00 (or VM230-02-00A) |
Port Size | 1/4" Rc / PT |
Number of Ports | 3 Ports |
Action Type | 2-Position, Normally Closed (NC) |
Operating Pressure | 0 to 1.0 MPa(0 to 145 PSI) |
Flow Capacity (Cv) | 1.0 Cv(Effective Area: 19 $mm^2$) |
Temperature Range | -5°C to 60°C (No freezing) |
Weight | Approx. 90 g |
Lubrication | Not required (Use ISO VG32 if lubricated) |
