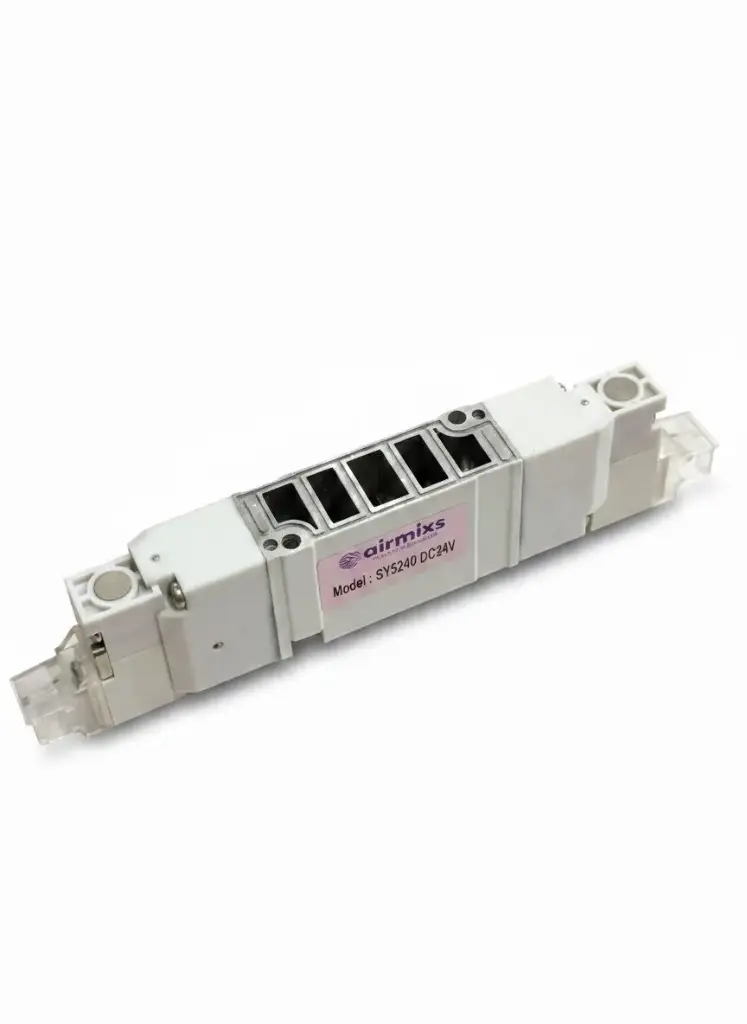

The SY5240 DC24V is engineered for precision control of double-acting cylinders where a memory function is required. Because it uses two solenoids, it only requires a short electrical pulse to switch positions, significantly reducing continuous power draw and heat generation.
Feature | Specification |
|---|
Model | SY5240-5DZ / SY5240-5L |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Double Solenoid(Internal Pilot) |
Port Size | 1/8" or 1/4"(Base Mounted) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W – 0.5W(Energy-saving type) |
Operating Pressure | 0.1 to 0.7 MPa(14.5 to 101 PSI) |
Flow Rate (Cv) | 0.71(Approx. 12.6 $mm^2$effective area) |
Response Time | $\leq$22ms – 32ms |
Protection Class | IP67(Dust-tight/Temporary immersion) |
Body Material | Aluminum Die-cast |
