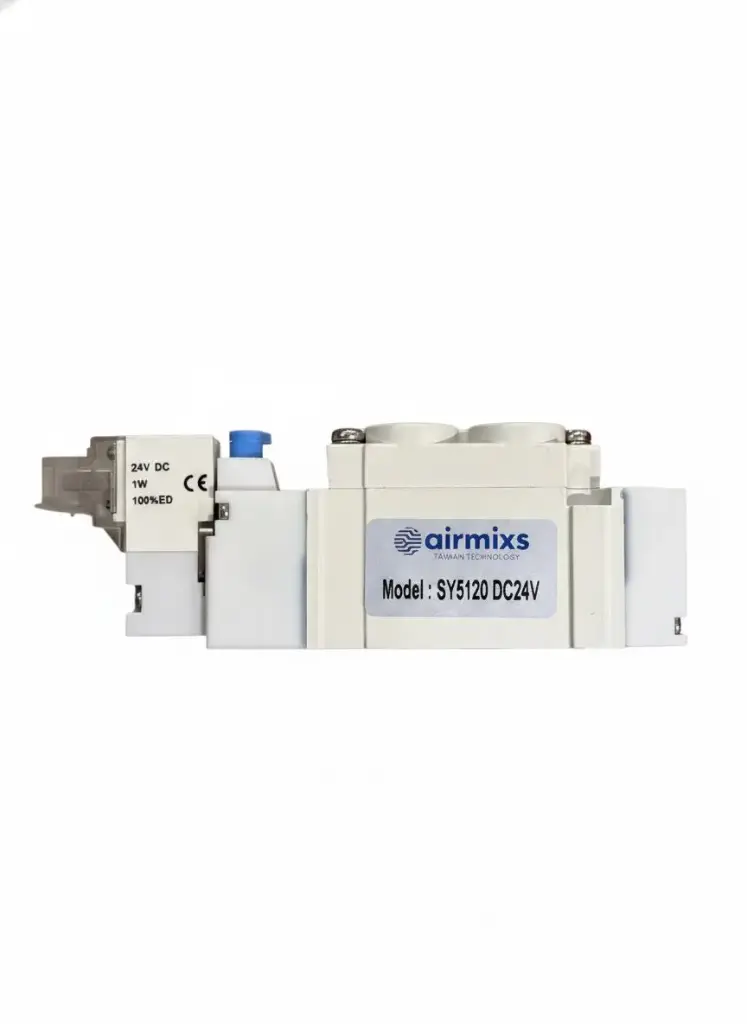

The SY5120 DC24V is a versatile directional control valve widely used for actuating medium-sized double-acting cylinders. Its body-ported design allows it to be used as a standalone valve or mounted on a manifold, providing flexibility for diverse pneumatic circuit layouts.
Feature | Specification |
|---|
Model | SY5120-5L / SY5120-5LZ / SY5120-5LOZ |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuation Type | Single Solenoid(Internal Pilot / Spring Return) |
Port Size | 1/8" or 1/4"(Body Ported) |
Operating Pressure | 0.15 to 0.7 MPa(22 to 101 PSI) |
Flow Capacity (Cv) | Approx. 0.5 to 0.8(Depending on port size) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) / 0.1W(Energy-saving type) |
Response Time | $\leq$25ms |
Mechanical Life | 50 Million Cycles |
