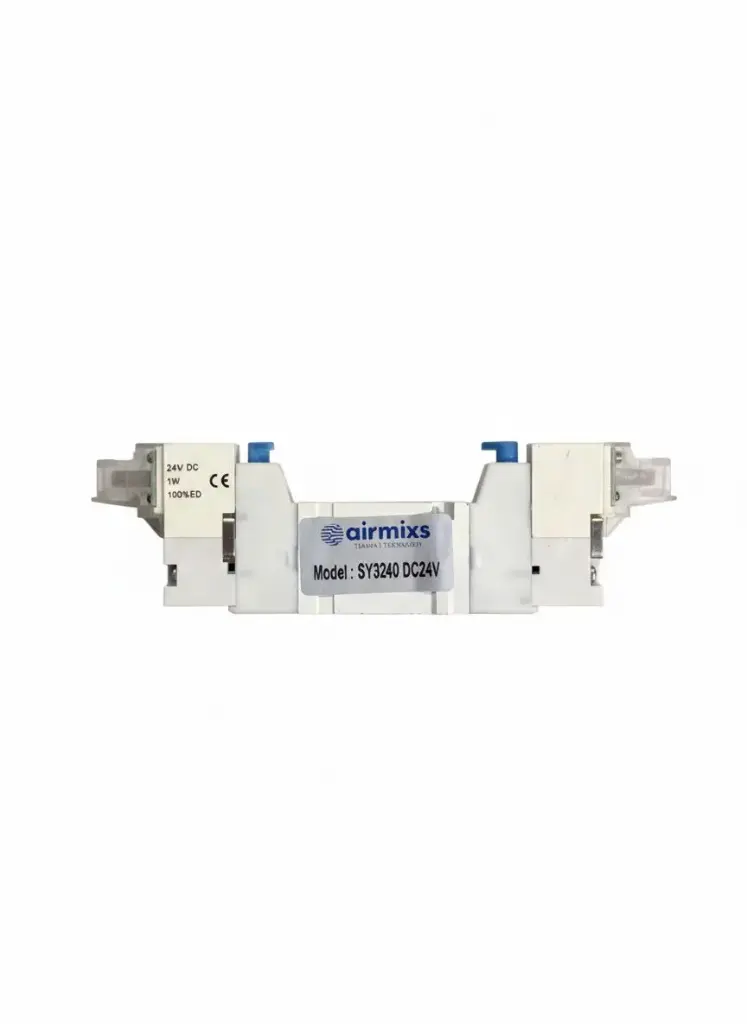

The SY3240 DC24V is an ultra-compact directional control valve designed for precision automation. Because it is a double solenoid model, it only requires a momentary electrical pulse to change states; the internal spool is held in place mechanically, preventing unexpected actuator movement if the electrical signal is interrupted.
Feature | Specification |
|---|
Model | SY3240-5L / SY3240-5LZ / SY3240-5LOZ |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Double Solenoid(Bistable / Latching) |
Port Size | 1/8"(Base Mounted) |
Effective Area (Cv) | 0.3 to 0.7(Approx. 12.6 $mm^2$) |
Operating Pressure | 0.1 to 0.7 MPa(14.5 to 101 PSI) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) / 0.1W(Energy-saving type) |
Response Time | $\leq$15ms |
Operating Temp. | -10°C to 50°C |
Protection Class | IP67(select models) / IP50(standard) |
