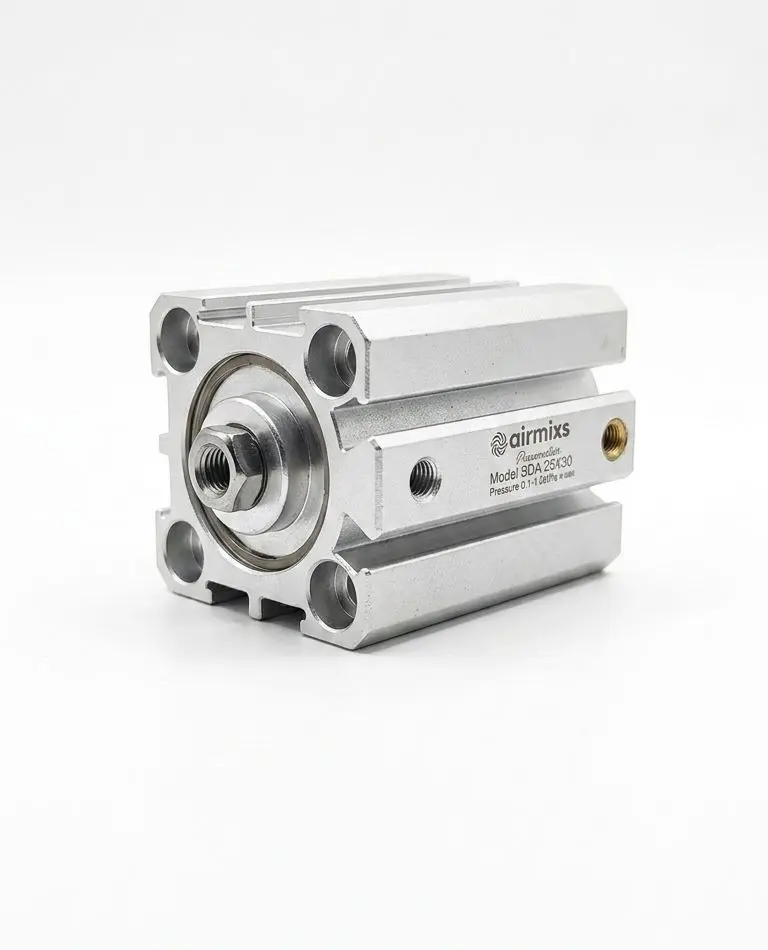

The SDA 25x30 is a high-performance, double-acting compact pneumatic cylinder designed for space-constrained industrial automation. Featuring a space-saving "pancake" design, it utilizes a rugged aluminum alloy body with hard-anodized internal surfaces for superior wear resistance and a long service life.
Its riveted structure ensures a permanent, leak-proof seal between the cylinder body and covers, making it an ideal choice for high-speed reciprocating linear motion in manufacturing, packaging, and assembly lines.
Feature | Specification |
|---|
Model | SDA 25x30 |
Bore Size | 25 mm |
Stroke Length | 30 mm |
Acting Type | Double Acting |
Working Medium | Compressed Air (Filtered to 40μm) |
Operating Pressure | 0.1 ~ 1.0 MPa (14 ~ 145 Psi) |
Proof Pressure | 1.5 MPa (215 Psi) |
Temperature Range | -20°C to 80°C |
Operating Speed | 30 ~ 500 mm/s |
Port Size | M5 x 0.8 |
Rod Thread | Female Thread (M5) |
Material | High-grade Aluminum Alloy |
