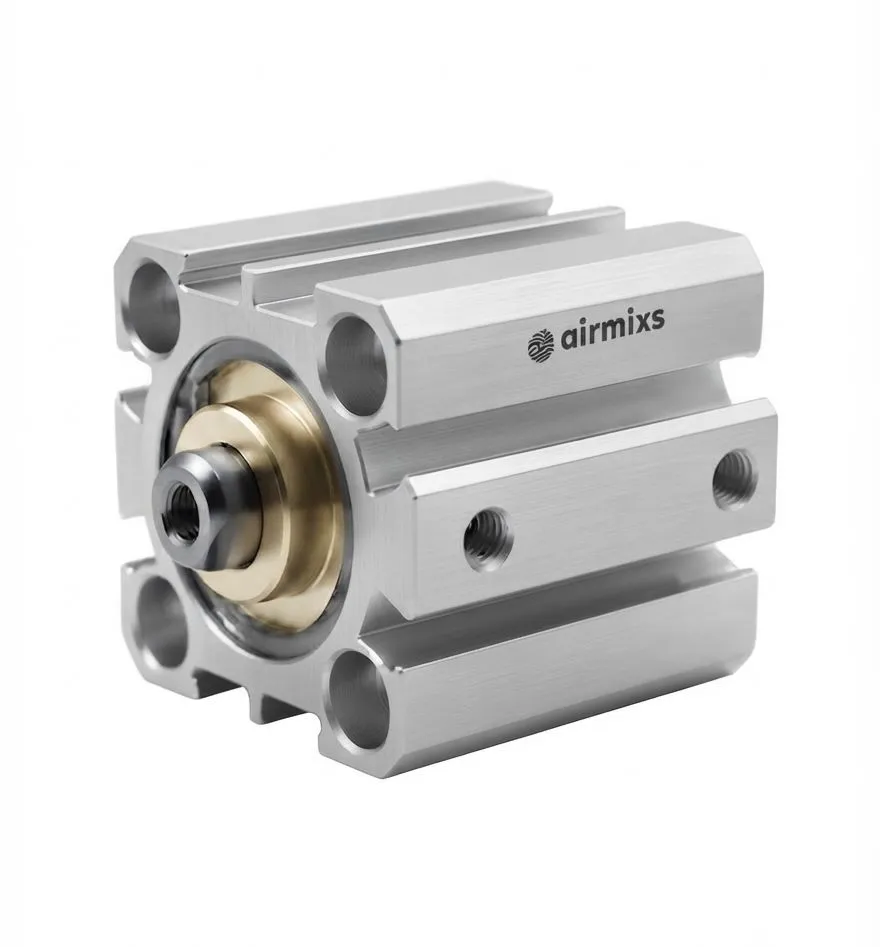

The AIRMIXS SDA25-15 is a high-performance, double-acting compact pneumatic cylinder engineered for automation tasks where installation space is severely limited. Featuring a slim, space-saving profile combined with a robust anodized aluminum body, it delivers dependable linear actuation and high cycle efficiency. The cylinder includes integrated rubber bumpers to absorb impact energy, reducing noise and extending operational lifespan, along with built-in magnetic tracking slots for convenient auto-switch integration.
Specification Parameter | Details |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA25-15 |
Bore Size | 25 mm |
Stroke Length | 15 mm |
Acting Type | Double Acting |
Fluid / Working Medium | Air (filtered through 40µm or finer element) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar / 22 to 145 psi) |
Proof Pressure | 1.5 MPa (215 psi / 15 bar) |
Operating Temperature | -20°C to +70°C |
Operating Speed Range | 30 to 500 mm/s |
Port Size | M5 x 0.8 |
Buffer Type | Rubber Bumper / Cushion Pad |
Piston Rod Thread Type | Female Thread |
Body Material | Anodized Aluminum Alloy |
