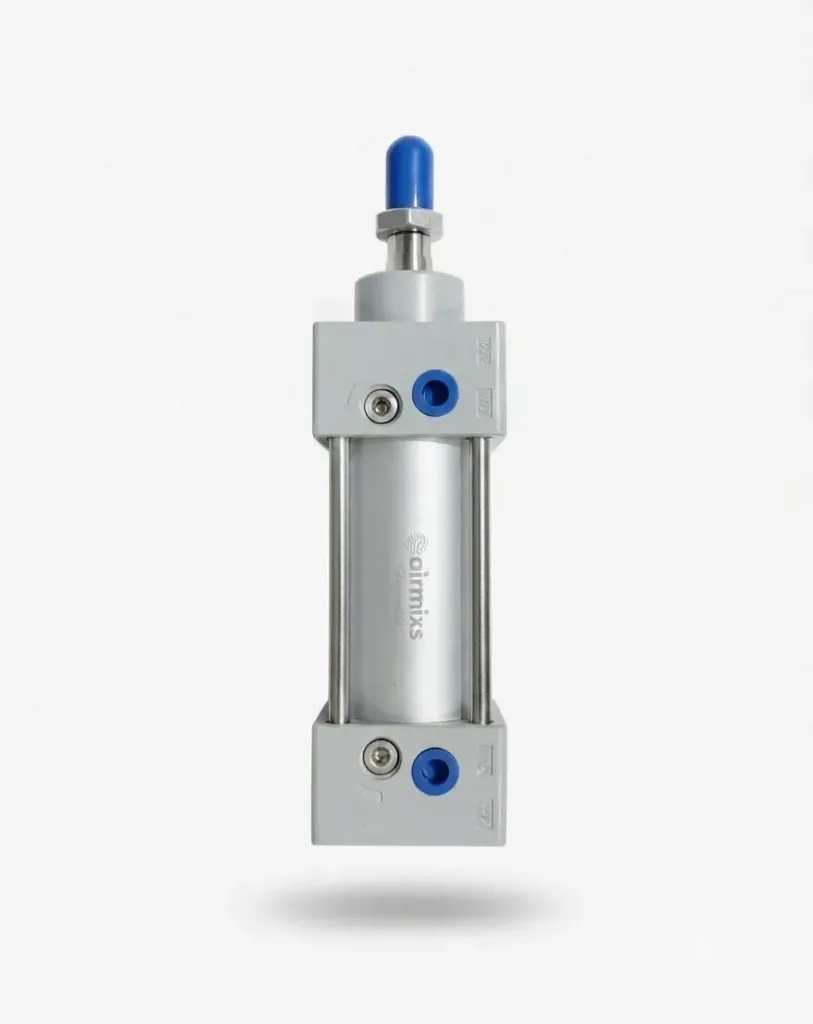

Engineered for heavy-duty industrial automation, material handling, clamping, and linear motion control, the AIRMIXS SC80-50 Standard Pneumatic Cylinder delivers reliable high-thrust performance with an extended 50mm stroke. Built with a rugged tie-rod aluminum alloy design, it features an asymmetric two-way piston sealing structure with an integrated oil-reservation function for smooth operation and extended component lifespan. Equipped with adjustable cushions at both end caps, this double-acting cylinder ensures stable, low-impact deceleration even at higher cycle rates.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS / SC Series Standard Cylinder |
Model Code | SC80-50 |
Action Type | Double-Acting |
Bore Size | 80 mm |
Stroke Length | 50 mm |
Working Medium | Compressed Air (Filtered through 40$\mu$m filter screen) |
Operating Pressure Range | 0.15 to 1.0 MPa (22 to 145 psi) |
Guaranteed Pressure Resistance | 1.5 MPa (215 psi) |
Operating Temperature | -20°C to 70°C (Standard NBR) |
Operating Speed Range | 30 to 800 mm/s |
Cushion Type | Adjustable Cushion / Buffer on both end covers |
Port / Thread Size | G3/8" (Standard pneumatic connection) |
Position Sensing | Magnet-equipped standard (Compatible with magnetic reed/solid-state switches) |
Body Material | Extruded Aluminum Alloy (Barrel and End Covers) |
Piston Rod Material | Hard Chrome-Plated Carbon Steel (S45C) |
Mounting Options | Standard (Basic), FA, FB, CA, CB, LB, TC, TCM1 |
