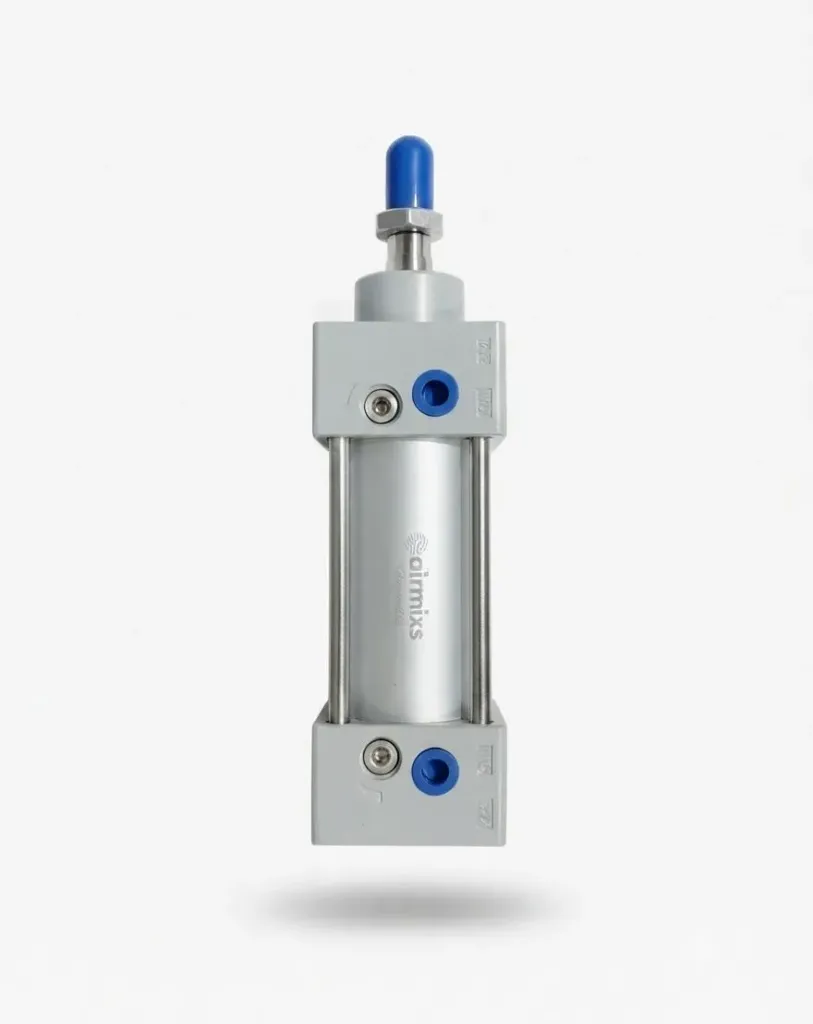

Engineered for heavy-duty industrial automation, material positioning, and linear actuation, the AIRMIXS SC80-125 Standard Pneumatic Cylinder delivers reliable high-thrust performance across an expanded 125mm stroke length. Built with a rugged aluminum alloy tie-rod construction, it incorporates an asymmetric two-way piston sealing system featuring an integrated oil-storage function for reduced friction and extended service life. Equipped with adjustable cushion valves at both end covers, this double-acting cylinder ensures smooth deceleration and prevents impact shock at the end of each stroke.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS / SC Series Standard Tie-Rod Cylinder |
Model Code | SC80-125 (SC80X125) |
Action Type | Double-Acting |
Bore Size | 80 mm |
Stroke Length | 125 mm |
Working Medium | Compressed Air (Filtered through 40$\mu$m or finer mesh) |
Operating Pressure Range | 0.15 to 1.0 MPa (22 to 145 psi) |
Guaranteed Pressure Resistance | 1.5 MPa (215 psi) |
Operating Temperature | -20°C to 70°C (Standard NBR) / Up to 150°C with high-temp seals |
Operating Speed Range | 30 to 800 mm/s |
Cushion Type | Adjustable Buffer / Cushion on both end covers |
Port / Thread Size | PT 3/8" (G or NPT optional threads) |
Piston Rod Thread | M20 x 1.5 |
Position Sensing | Magnet-equipped standard (Compatible with magnetic reed/solid-state sensors) |
Body Material | Extruded Aluminum Alloy |
Piston Rod Material | S45C Hard Chrome-Plated Carbon Steel |
Mounting Options | Basic, FA, FB, CA, CB, LB, TC, TCM1 |
