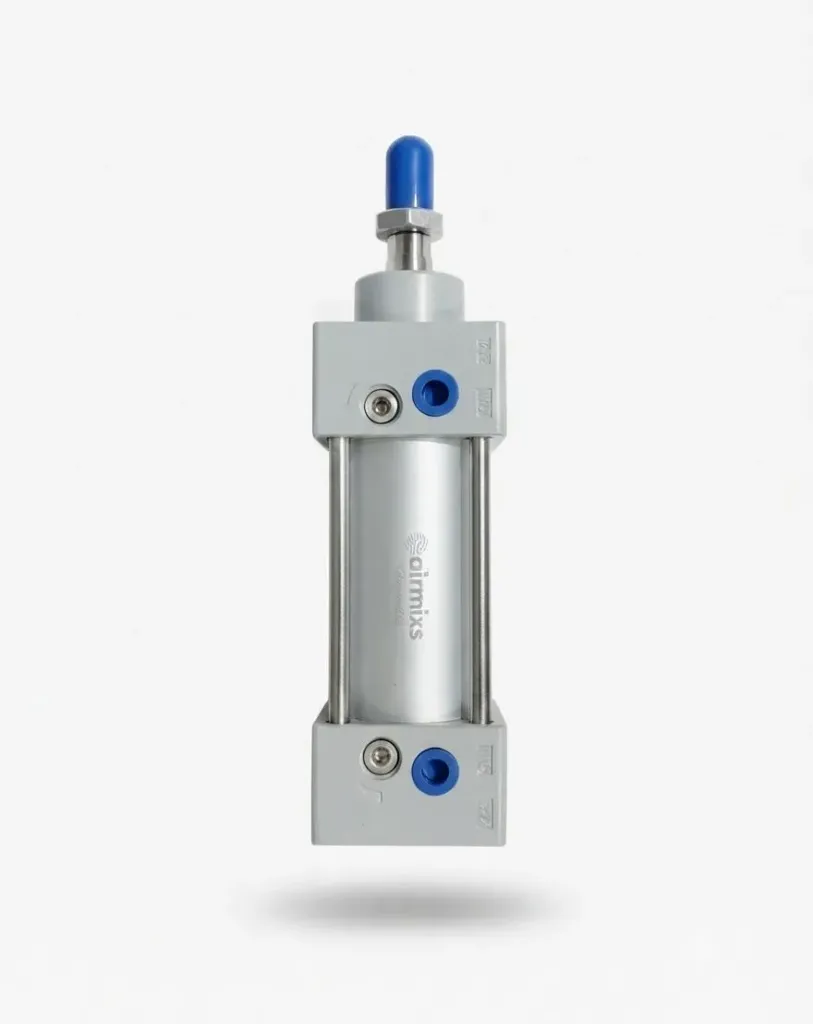

The AIRMIXS SC63-400 is an extra-long reach, heavy-duty double-acting standard pneumatic cylinder engineered for automated industrial lines requiring extensive linear travel and robust force output. Combining a powerful 63mm bore size with a long 400mm stroke length, this unit delivers reliable, high-capacity thrust for heavy pushing, pulling, lifting, and transfer applications over wide spans. Built with a rugged tie-rod construction and a corrosion-resistant hard-anodized aluminum body, it ensures exceptional structural stability and dependable high-cycle performance in harsh factory environments.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC63-400 |
Bore Size | 63 mm |
Stroke Length | 400 mm |
Acting Type | Double Acting |
Working Fluid | Filtered Compressed Air (40µm filter element) |
Operating Pressure Range | 0.15 – 1.0 MPa (21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | PT 3/8" |
Piston Rod Thread | M16 × 1.5 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Air Cushion (Both Ends) |
Temperature Range | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy |
