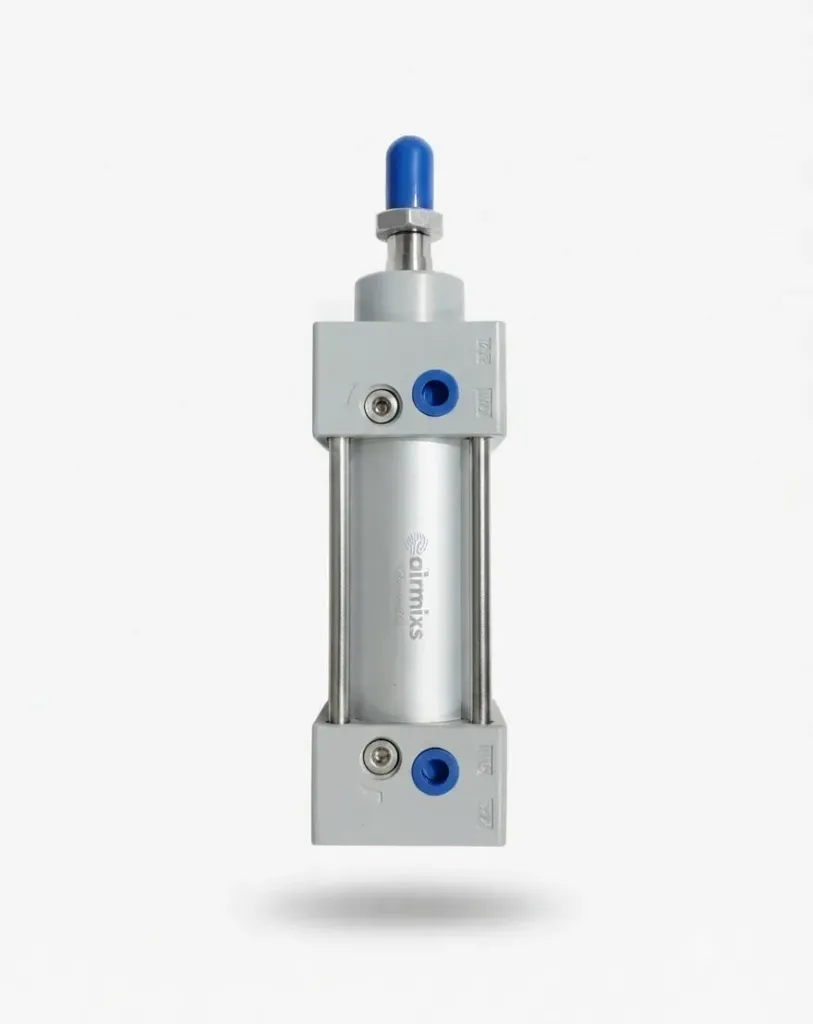

The AIRMIXS SC40-175 is a durable, double-acting standard pneumatic cylinder engineered for automated manufacturing, assembly lines, and extended linear actuation. Offering a 175mm stroke with a reliable 40mm bore size, this unit delivers increased force output and precise motion control. Constructed with corrosion-resistant hard-anodized aluminum alloy and precision seals, it is built for high-cycle performance in demanding industrial environments.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC40-175 |
Bore Size | 40 mm |
Stroke Length | 175 mm |
Acting Type | Double Acting |
Working Fluid | Filtered Compressed Air (40-micron filter element) |
Operating Pressure Range | 0.15 – 1.0 MPa (21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | PT 1/4" |
Piston Rod Thread | M12 × 1.25 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Cushion |
Ambient Temperature | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy |
