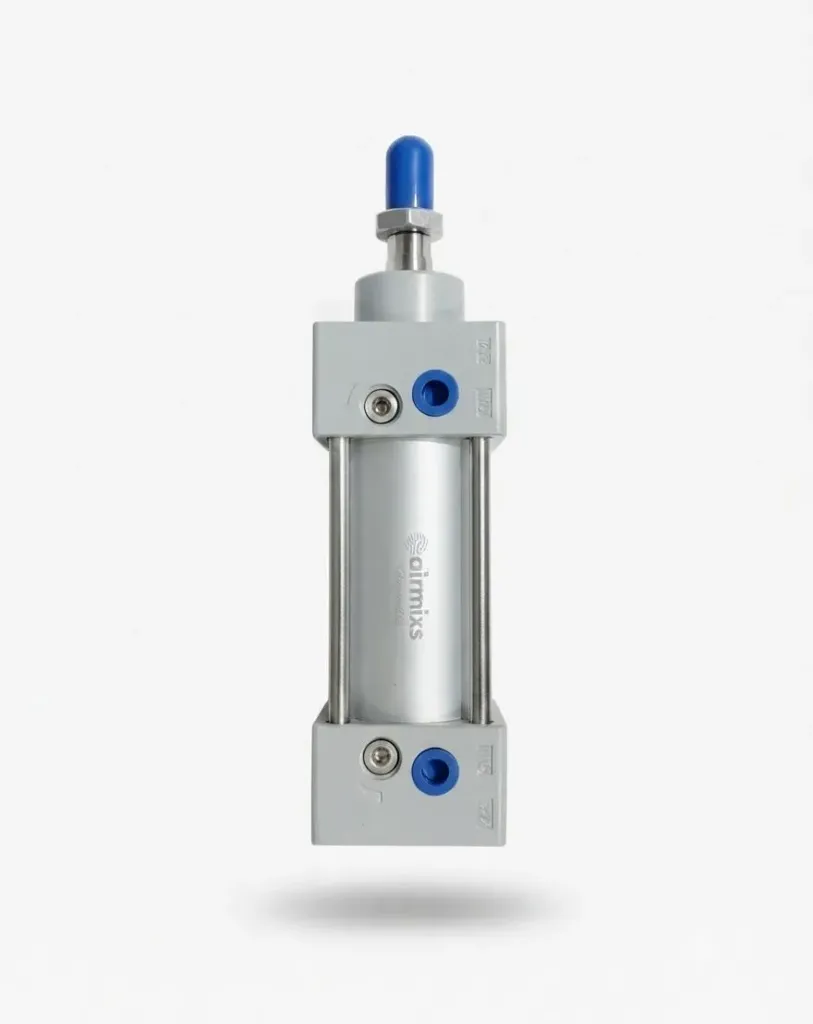

The AIRMIXS SC32-200 is a heavy-duty, double-acting standard pneumatic cylinder built to provide reliable linear actuation with a longer 200mm stroke length. Ideal for industrial automation, transfer systems, and clamping applications, it combines a robust tie-rod construction with high-grade aluminum materials to ensure smooth operation, high cycle life, and dependable force output.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC32-200 |
Bore Size | 32 mm |
Stroke Length | 200 mm |
Acting Type | Double Acting |
Working Fluid | Compressed Air (Filtered through 40µm element) |
Operating Pressure Range | 0.15 – 1.0 MPa (21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | PT 1/8" |
Piston Rod Thread | M10 × 1.25 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Cushion |
Temperature Range | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy |
