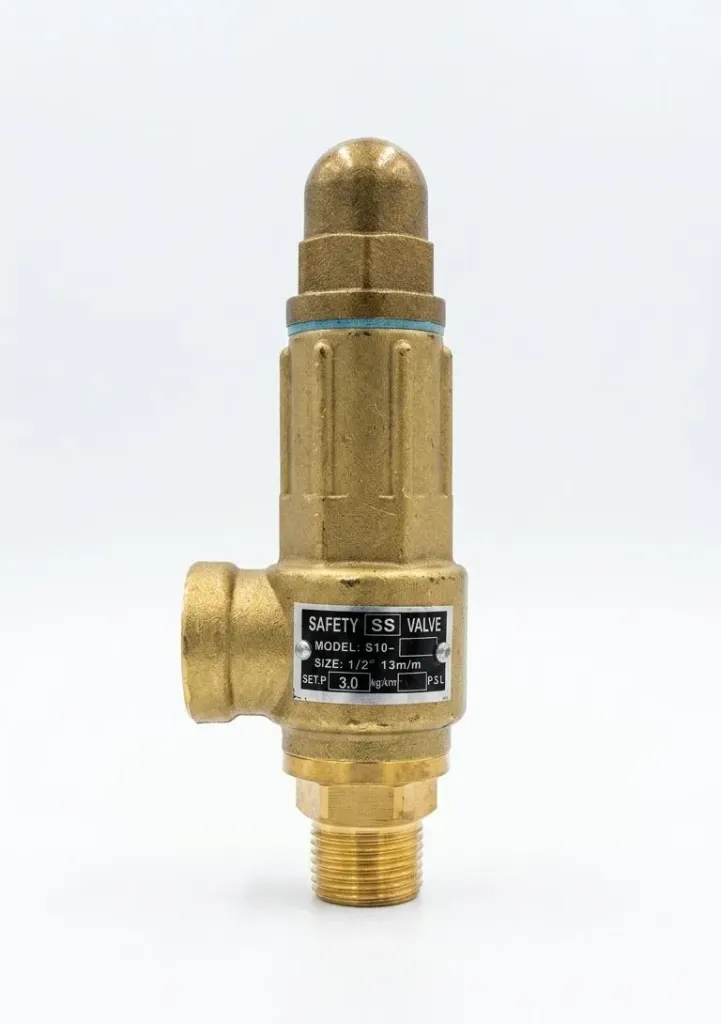

The AIRMIXS S10T $1/2"$ Ultra-High Pressure Safety Relief Valve is a heavy-duty mechanical safety device engineered specifically for extreme-pressure environments. Designed to serve as a definitive failsafe for pressure vessels, pipelines, and high-output multi-stage compressors, this valve automatically activates and vents excess pressure the moment the system reaches its 33 BAR threshold, preserving industrial equipment and ensuring workforce safety.
Key Features & Benefits
Completely Sealed T-Type Bonnet: Built with a closed dome cap configuration that completely isolates internal working mechanisms. By eliminating open manual lifting levers, it guarantees zero top-cap leakage, forcing all vented high-pressure media safely through the designated $1/2"$ side discharge port.
Heavy-Cast Bronze Body: Crafted from premium industrial-grade bronze to provide exceptional durability, preventing physical fatigue and micro-cracking when subjected to sudden, violent pressure venting cycles.
Ultra-High Pressure Management: Engineered with a specialized, reinforced internal stainless steel spring calibrated precisely for 33 BAR systems. This ensures the valve remains perfectly leak-tight up to its maximum threshold and reseats reliably once pressure drops back to safe levels.
Corrosion and Heat Resistant: Optimally balanced to manage high-temperature steam pipelines or freezing inert gas manifolds, delivering versatile performance across a wide industrial thermal envelope ($-45^\circ\text{C}$ to $185^\circ\text{C}$ ).
Product List Name: AIRMIXS S10T $1/2"$ Ultra-High Pressure Bronze Safety Relief Valve (33 BAR)
Estimated Price Range:215 SAR to 275 SAR(Positioned slightly above lower bar variants to account for the specialized ultra-high pressure heavy-duty internal spring engineering).
Technical Data Sheet
Core Specifications
Brand: AIRMIXS
Model: S10T Series (Sealed Cap / Closed Bonnet Type)
Inlet Connection:$1/2"$ Male RC Thread ($13\text{ mm}$ Seat Diameter)
Outlet Connection:$1/2"$ Female G Thread
Preset Relief Pressure: 33 BAR ($33.6\text{ kgf/cm}^2$ / Approx. $478.6\text{ PSI}$ )
Operating Temperature Range:$-45^\circ\text{C}$ to $185^\circ\text{C}$
Applicable Media: Ultra-high pressure compressed air, high-temperature steam, inert gases (nitrogen, argon), hot water, and non-corrosive fluids.
Material Construction
Main Valve Body: Heavy-Cast Industrial Bronze (ASTM-B584)
Sealed Top Bonnet: Forged Brass / Bronze
Internal Stem & Disc: Precision-Machined Brass
Pressure Spring: Reinforced Ultra-High Tension Stainless Steel
