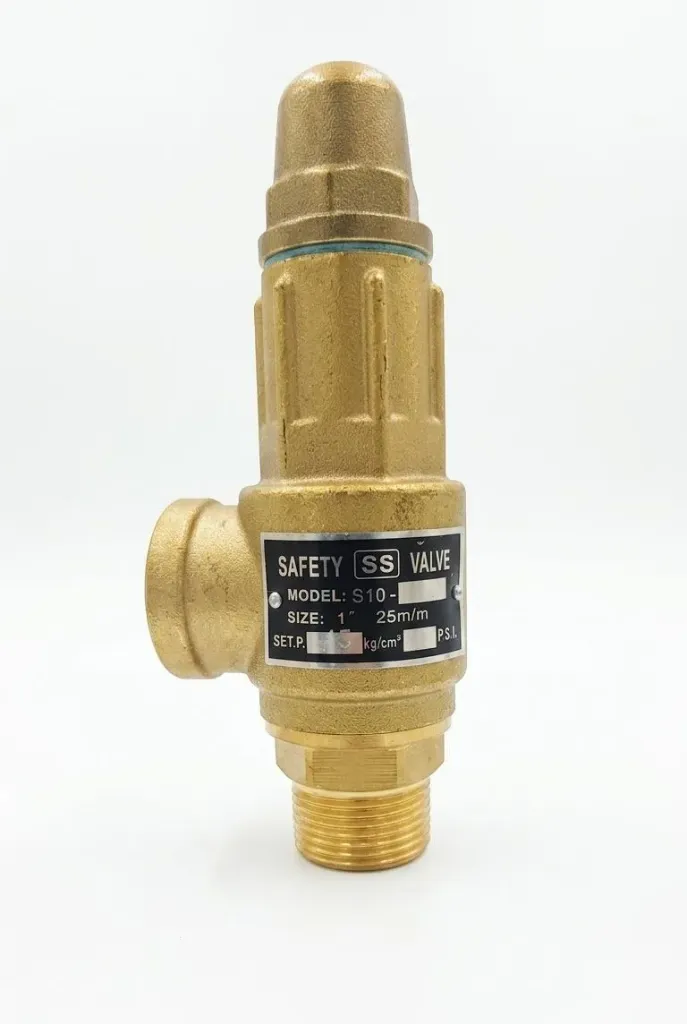

The AIRMIXS S10T 1" 15 BAR Safety Relief Valve serves as a vital safeguard for pipelines, industrial boilers, and pressure vessels, automatically venting extreme pressure spikes before they lead to structural failure.
Sealed Cap Design (T-Type): Features a closed top dome enclosure instead of an open external lever mechanism. This configuration seals the spring assembly, ensuring that when pressure relief occurs, the media is safely and completely channeled out of the side discharge port without leaking into the surrounding work area.
Automatic Overpressure Relief: Dynamically opens the valve seat when system pressure breaches the pre-set 15 BAR threshold, discharging excess capacity to maintain optimal line equilibrium.
Corrosion-Resistant Cast Build: Formed from a heavy bronze casting that boasts excellent mechanical durability and localized corrosion protection against aggressive steam cycles and moist environments.
High-Tolerance Threads: Equipped with clean, high-precision male-to-female threaded connections to assure a secure, gas-tight installation on heavy-duty process networks.
Feature | Specification |
|---|
Model | S10T (Cap Type / Closed Dome) |
Inlet Connection | Threaded 1" (DN25) |
Outlet Connection | Threaded 1" (DN25) |
Set Pressure Range | Configurable up to 15 BAR ($15.3\text{ kgf/cm}^2$) |
Working Temperature | -45°C to 185°C |
Body Material | Heavy-Duty Bronze / Cast Brass |
Trim Material | Brass / Stainless Steel |
Applicable Media | Steam, Compressed Air, Nitrogen, Water, and Non-Corrosive Fluids |
Structure | Sealed cap mechanical design with adjustable spring tension |
