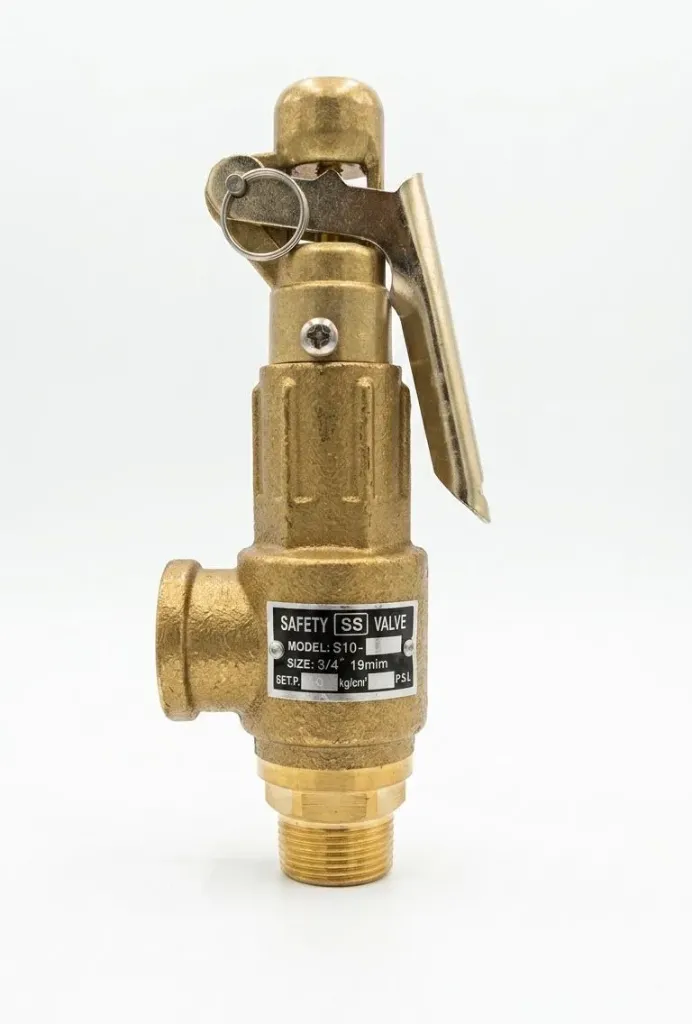

The AIRMIXS S10LT $\frac{3}{4}$" 30 BAR Safety Relief Valve is a critical security component engineered to manage, control, and safely vent high-velocity pressure spikes before they cause dangerous system or vessel failures.
High-Pressure Security Management: Specifically calibrated to handle extreme thresholds up to 30 BAR, making it an ideal choice for high-pressure industrial boilers, large air receivers, and demanding pneumatic pipe networks.
Manual Override Test Lever: Features an integrated mechanical pull-lever assembly, allowing operators to easily run routine manual tests and blast out any trapped particulate or sediment from the seat.
Heavy-Duty Bronze Construction: Cast from industrial-grade bronze to deliver exceptional resistance to mechanical stress, corrosive elements, and intense thermal cycling.
Precision Sealed Machining: Meticulously cut male-to-female threaded ports ensure a secure, leak-free installation directly on high-pressure pipelines.
Feature | Specification |
|---|
Model | S10LT (Lever Type) |
Inlet Connection | Threaded $\frac{3}{4}$" (DN20) |
Outlet Connection | Threaded $\frac{3}{4}$" (DN20) |
Set Pressure Range | Configurable up to 30 BAR ($30.6\text{ kgf/cm}^2$) |
Working Temperature | -45°C to 185°C |
Body Material | Heavy-Duty Bronze / Cast Brass |
Trim Material | Brass / Stainless Steel |
Applicable Media | High-Pressure Steam, Compressed Air, Water, and Non-Corrosive Fluids |
Structure | Full-lift mechanical design with a high-tension, reinforced spring |
