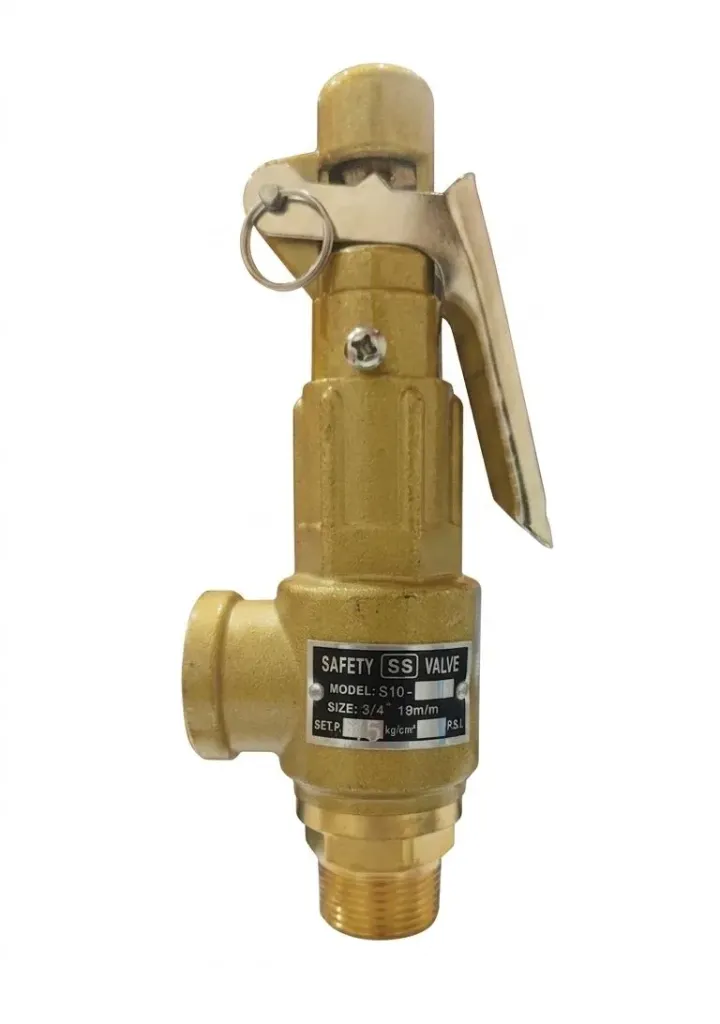

The AIRMIXS S10LT $\frac{3}{4}$" Safety Relief Valve is a critical security device designed to protect pressure vessels, industrial pipelines, and boiler systems from dangerous overpressure conditions.
Automatic Overpressure Release: Instantly opens and vents excess media when system pressure reaches the 15 BAR threshold, rapidly stabilizing system pressure within safe limits.
Manual Override Test Lever: Features an integrated mechanical lift lever assembly, allowing system operators to manually test the valve during routine maintenance and clear out any trapped scale or sediment.
Corrosion-Resistant Bronze Body: Constructed from high-grade industrial bronze, providing excellent structural resilience against high-temperature steam environments and thermal shock.
Precision-Machined Fitting: Engineered with clean, high-tolerance threaded male-to-female ports for a simple, completely leak-free installation on critical pipe lines.
Feature | Specification |
|---|
Model | S10LT (Lever Type) |
Inlet Connection | Threaded $\frac{3}{4}$" (DN20) |
Outlet Connection | Threaded $\frac{3}{4}$" (DN20) |
Set Pressure Range | Configurable up to 15 BAR ($15.3\text{ kgf/cm}^2$) |
Working Temperature | -45°C to 185°C |
Body Material | Heavy-Duty Bronze / Cast Brass |
Trim Material | Brass / Stainless Steel |
Applicable Media | Steam, Compressed Air, Water, and Non-Corrosive Fluids |
Structure | Full-lift mechanical design with adjustable spring tension |
