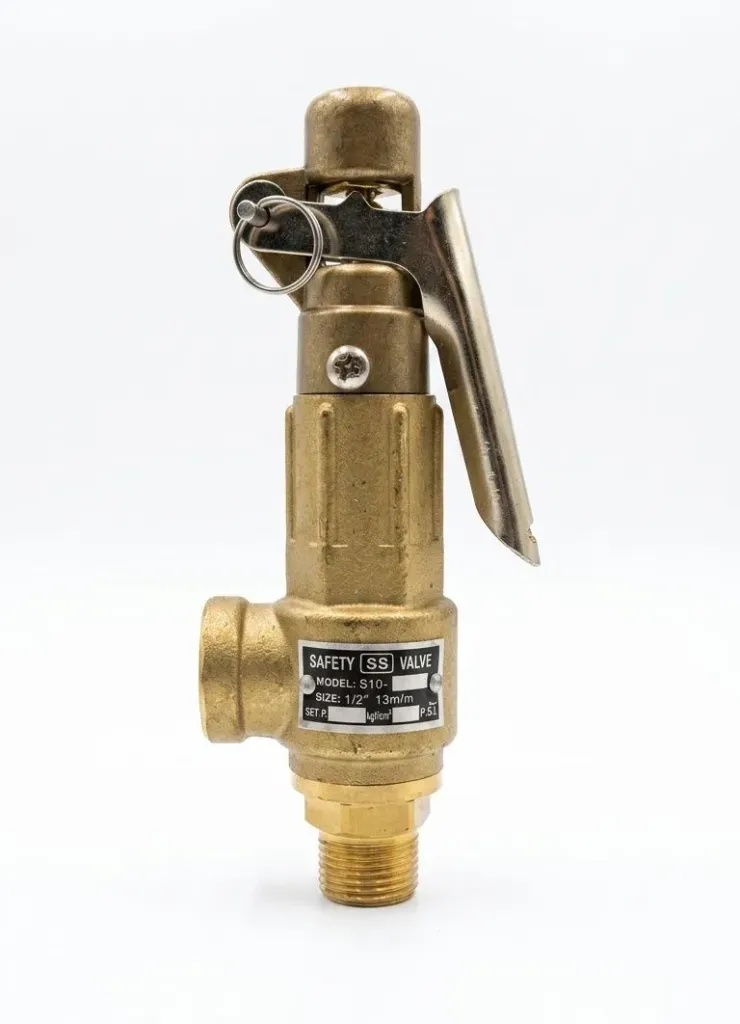

The AIRMIXS S10LT $\frac{1}{2}$" Safety Relief Valve is a critical security component designed to protect pipelines, storage tanks, and boilers from dangerous overpressure conditions.
Automatic Overpressure Release: Instantly vents excess media when system pressure crosses the factory or field-configured 15 BAR threshold, dropping pressure to safe levels.
Manual Override Test Lever: Features an integrated mechanical lift lever assembly, permitting maintenance crews to manually execute quick operational tests and blow out trapped sediment.
Robust Bronze Construction: Crafted from industrial-grade bronze for exceptional resistance to structural stress, corrosion, and extreme thermal cycling common to hot steam systems.
Compact High-Efficiency Fit: Precision-machined threaded connections ensure a tight, low-profile, leak-free installation directly on critical processing nodes.
Website Listing Information
List Name: AIRMIXS S10LT $\frac{1}{2}$" Bronze Safety Relief Valve with Lever (15 BAR)
Price Range:$45.00 – $75.00 USD(Pricing varies based on order volume, specialized pressure calibration requirements, or custom certification standards)
Feature | Specification |
|---|
Model | S10LT (Lever Type) |
Inlet Connection | Threaded $\frac{1}{2}$" (DN15) |
Outlet Connection | Threaded $\frac{1}{2}$" (DN15) |
Set Pressure Range | Configurable up to 15 BAR ($15.3\text{ kgf/cm}^2$) |
Working Temperature | -45°C to 185°C |
Body Material | Heavy-Duty Bronze / Cast Brass |
Trim Material | Brass / Stainless Steel |
Applicable Media | Steam, Compressed Air, Water, and Non-Corrosive Fluids |
Structure | Full-lift mechanical design with adjustable spring tension |
