The AIRMIXS S10LT 25 BAR Safety Relief Valve is a critical safety component designed to manage and vent extreme pressure spikes before they cause system or vessel failure.
High-Pressure Safety Management: Engineered specifically to handle higher thresholds up to 25 BAR, making it ideal for intensive industrial boilers, high-pressure receivers, and pneumatic pipe networks.
Manual Override Lever: Includes a heavy-duty chrome-plated lift lever assembly, enabling quick manual system testing and clearing of sediment during routine maintenance cycles.
Industrial Bronze Construction: The cast bronze body provides exceptional resilience against corrosion, stress-cracking, and the intense thermal cycling common in high-pressure steam environments.
Leak-Free Machining: Precision-cut male-to-female threaded connections ensure tight, reliable integration into demanding high-pressure pipelines.
Website Listing Information

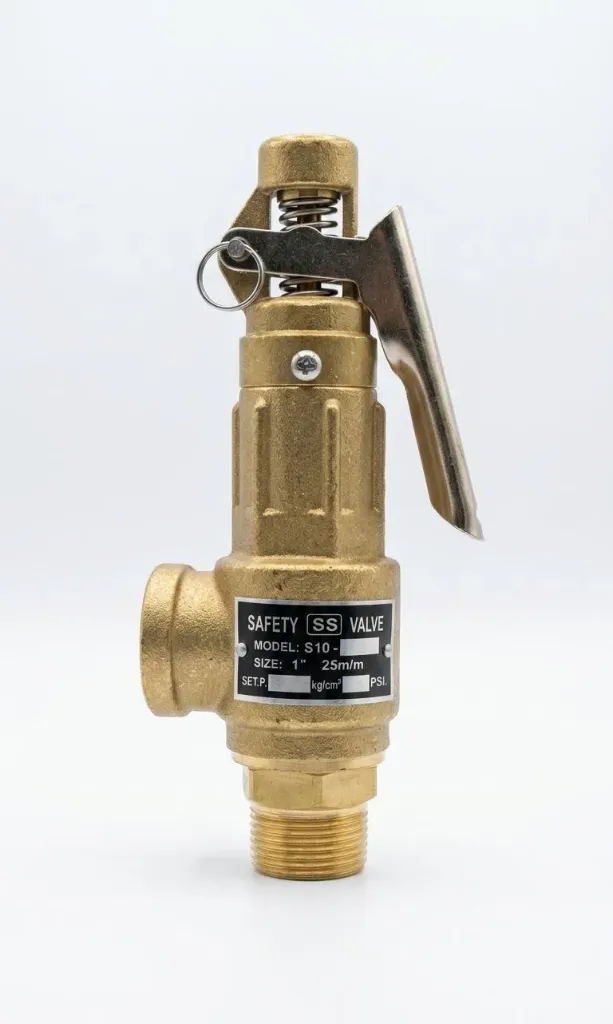

List Name: AIRMIXS S10LT 1" Bronze High-Pressure Safety Relief Valve with Lever (25 BAR)
Price Range:$75.00 – $115.00 USD(Pricing reflects the reinforced high-pressure build; final cost may vary depending on bulk order quantities or specific testing certifications)
Feature | Specification |
|---|
Model | S10LT (Lever Type) |
Inlet Connection | Threaded 1" (DN25) |
Outlet Connection | Threaded 1" (DN25) |
Set Pressure Range | Configurable up to 25 BAR (25.5 kgf/cm²) |
Working Temperature | -45°C to 185°C |
Body Material | Heavy-Duty Bronze / Cast Brass |
Trim Material | Brass / Stainless Steel |
Applicable Media | High-Pressure Steam, Compressed Air, Water, and Non-Corrosive Fluids |
Structure | Full-lift mechanical design with high-tension reinforced spring |
