The AIRMIXS S10LT Safety Relief Valve is an essential safety component used to prevent catastrophic equipment failure by automatically venting excess pressure.
Reliable Overpressure Relief: Automatically opens when system pressure crosses the pre-configured 15 BAR threshold, ensuring immediate pressure drop and system stabilization.
Manual Testing Lever: Equipped with a durable mechanical lift lever that allows maintenance teams to manually pull the valve open to check for blockages and verify operational readiness.
Corrosion-Resistant Cast Body: Constructed from robust industrial bronze, giving it exceptional longevity and structural integrity when exposed to high-temperature steam and damp environments.
Precision Threading: Features cleanly machined male-to-female threaded connections for a secure, leak-free installation directly onto pressure vessels or pipelines.
Website Listing Information

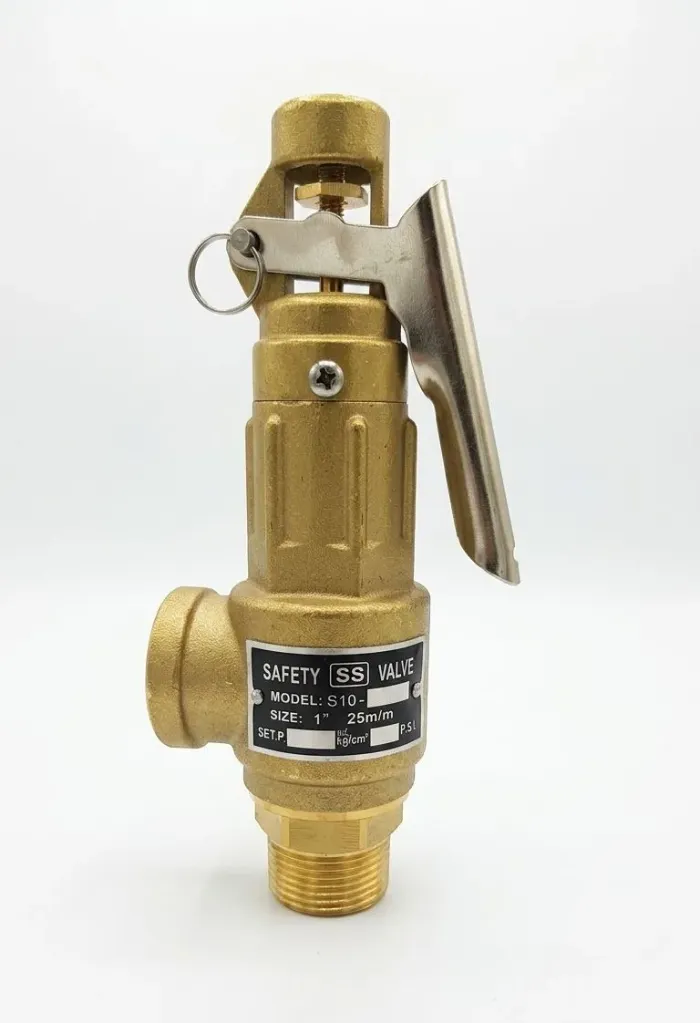

List Name: AIRMIXS S10LT 1" Bronze Safety Relief Valve with Lever (15 BAR)
Price Range:$60.00 – $95.00 USD(Pricing may vary based on specific wholesale volumes, localized shipping, or required custom pressure calibration certificates)
Feature | Specification |
|---|
Model | S10LT (Lever Type) |
Inlet Connection | Threaded 1" (DN25) |
Outlet Connection | Threaded 1" (DN25) |
Set Pressure Range | Configurable up to 15 BAR (15.3 kgf/cm²) |
Working Temperature | -45°C to 185°C |
Body Material | Heavy-Duty Bronze / Cast Brass |
Trim Material | Brass / Stainless Steel |
Applicable Media | Steam, Compressed Air, Water, and Non-Corrosive Fluids |
Structure | Full-lift mechanical design with adjustable spring tension |
