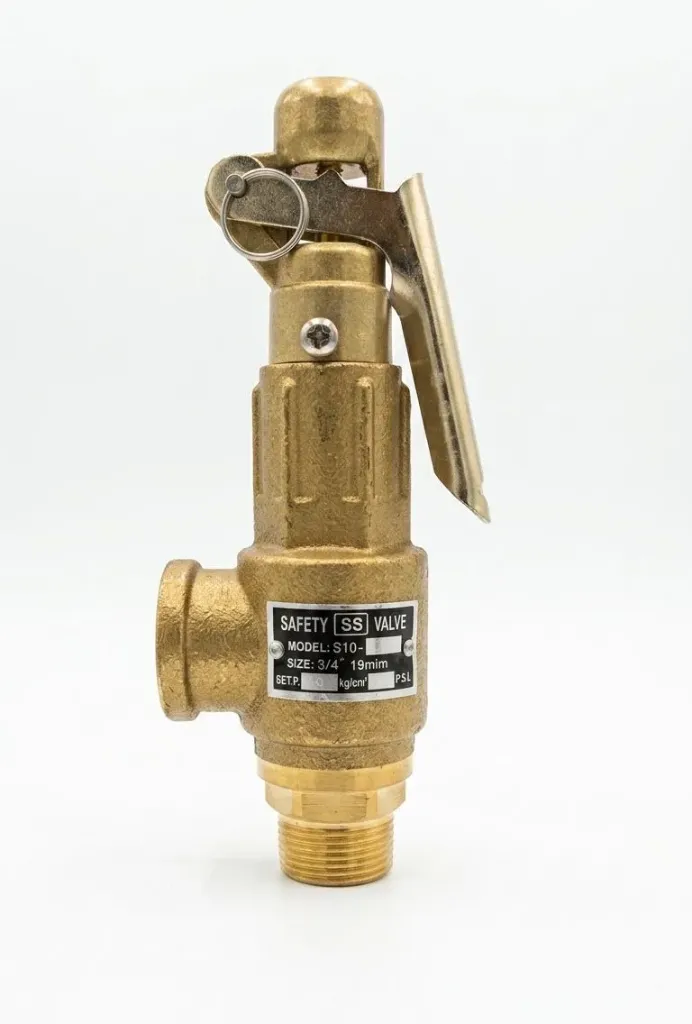

The AIRMIXS S10-LT 3/4" is an industrial-grade, automatic pressure relief safety valve designed to safeguard high-pressure air systems, steam lines, boilers, and pressure vessels from exceeding safe working parameters. Utilizing a high-precision, spring-loaded direct-acting system, this valve provides an immediate mechanical fail-safe by opening automatically to exhaust high volumes of gases or vapor once internal system thresholds cross safety limits.
This heavy-duty configuration features a standard 3/4" male threaded connection port at the base for secure pipeline mounting, combined with a right-angle female discharge port featuring a 19 mm internal flow orifice to maximize air evacuation speed. For enhanced operational safety, the S10-LT is equipped with an integrated manual lifting lever mechanism (pull ring style), allowing plant operators to manually test the valve seat function and clear potential debris even when the system is operating below the set popping pressure.
Feature | Specification |
|---|
Model Code | S10-LT (S10 Series with Mechanical Lift Lever) |
Brand | AIRMIXS Pneumatics |
Valve Type | Spring-Loaded Direct Acting Safety Relief Valve |
Inlet Port Size | 3/4" Male Threaded (Tapered Profile) |
Exhaust Discharge Port | Female Right-Angle Port (19 m/m Internal Orifice) |
Flow Orifice Diameter | 19 mm |
Maximum Pressure Resistance | 30 Bar (3.0 MPa / 435 PSI) |
Fluid / Medium Suitability | Steam, Compressed Air, Non-Corrosive Industrial Gases |
Sealing System Core | Metal-to-Metal Precision Lapped Disc Seat |
Manual Testing Mechanism | Integrated Heavy-Duty Lifting Lever with Safety Split-Ring |
Working Temperature Range | Extended Thermal Limit (Suitable for High-Temperature Steam Applications) |
