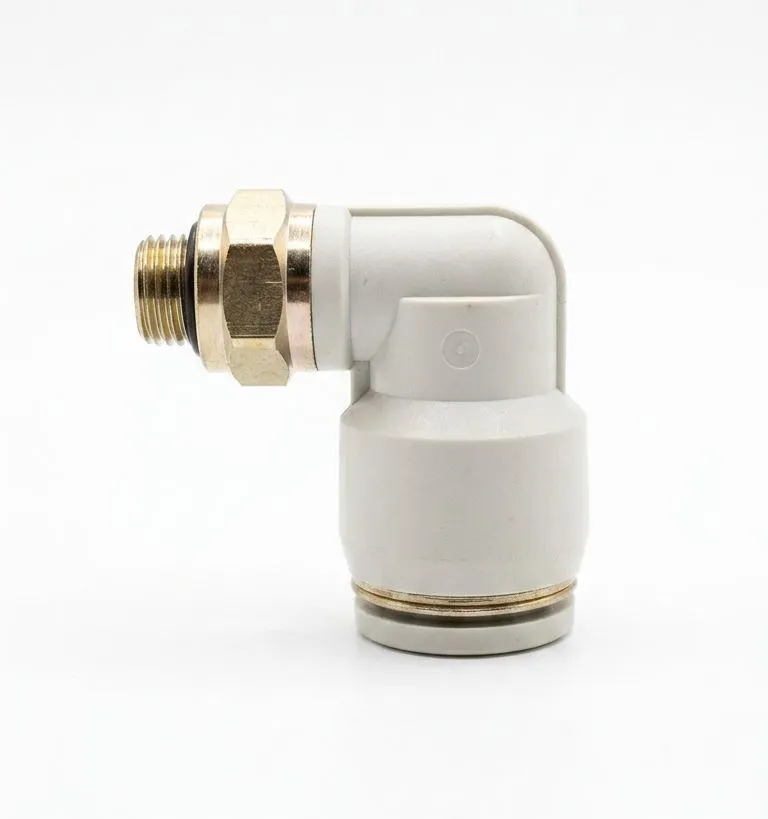

The AIRMIXS PL12-G01 is a high-performance, industrial-grade pneumatic 90-degree swivel elbow fitting designed for effortless connection of air lines. It features a user-friendly push-to-connect mechanism that forms an immediate, high-pressure seal on standard tubing without the need for tools. Built to survive harsh manufacturing environments, the fitting combines robust nickel-plated brass components with an integrated O-ring on the parallel G-thread to guarantee completely leak-free air distribution.
Key Features
One-Touch Connection:Instant push-to-connect setup evenly grips the exterior of the tubing.
360° Swivel Body:The elbow structure can rotate freely even after installation, enabling flexible cable routing.
Secure Seal Design:Equipped with a standard parallel G-thread and a pre-installed rubber O-ring gasket for airtight confidence.
Broad Compatibility:Perfectly suited for automated assembly lines, packaging machinery, and general industrial air lines.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL12-G01 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 12 mm |
Thread Connection Size | G 1/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon |
Materials of Construction | Nickel-Plated Brass, PBT Plastic, Stainless Steel Claws |
