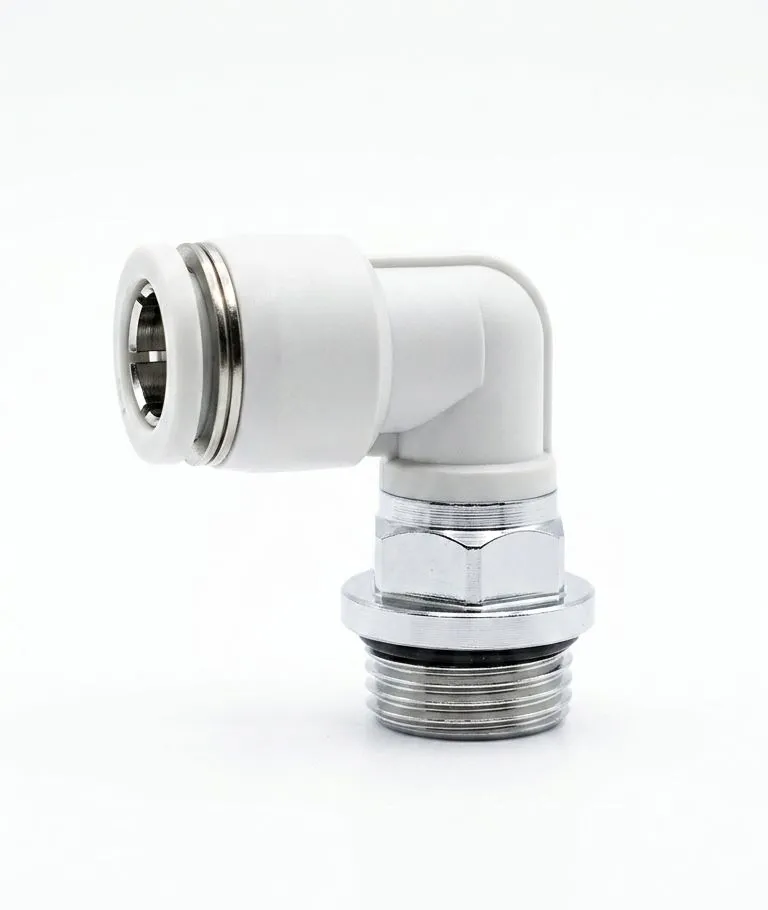

The AIRMIXS PL10-G03 is a high-performance, heavy-duty pneumatic 90-degree swivel elbow fitting engineered for secure and efficient high-flow air line connections. Outfitted with an integrated one-touch push-to-connect sleeve, it allows for instant, tool-free installation of mid-sized 10mm outer diameter tubing while establishing an exceptionally reliable seal under pressure. This model features a sleek, rugged white composite body paired with a mid-sized chrome/nickel-plated brass connection base. Equipped with a parallel G3/8" thread and a pre-installed rubber O-ring gasket, it delivers absolute leak protection straight out of the box without requiring messy Teflon tape, making it ideal for industrial manifolds, automated packaging machinery, and heavy-duty pneumatic control panels.
Key Features
One-Touch Connection: High-precision push-to-connect mechanism firmly grips 10mm outer diameter tubing with uniform holding pressure.
360° Swivel Body: The elbow structure can rotate freely even after threading into place, allowing for flexible line routing and cleaner layouts around adjacent components.
G-Thread Parallel Sealing: Features a standard parallel G3/8" thread with an integrated nitrile rubber O-ring gasket for an instant, completely airtight joint.
Corrosion-Resistant Engineering: Built with rugged PBT plastic and a mirror-like chrome/nickel-plated brass base to withstand heavy industrial wear and tear.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL10-G03 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 10 mm |
Thread Connection Size | G 3/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
