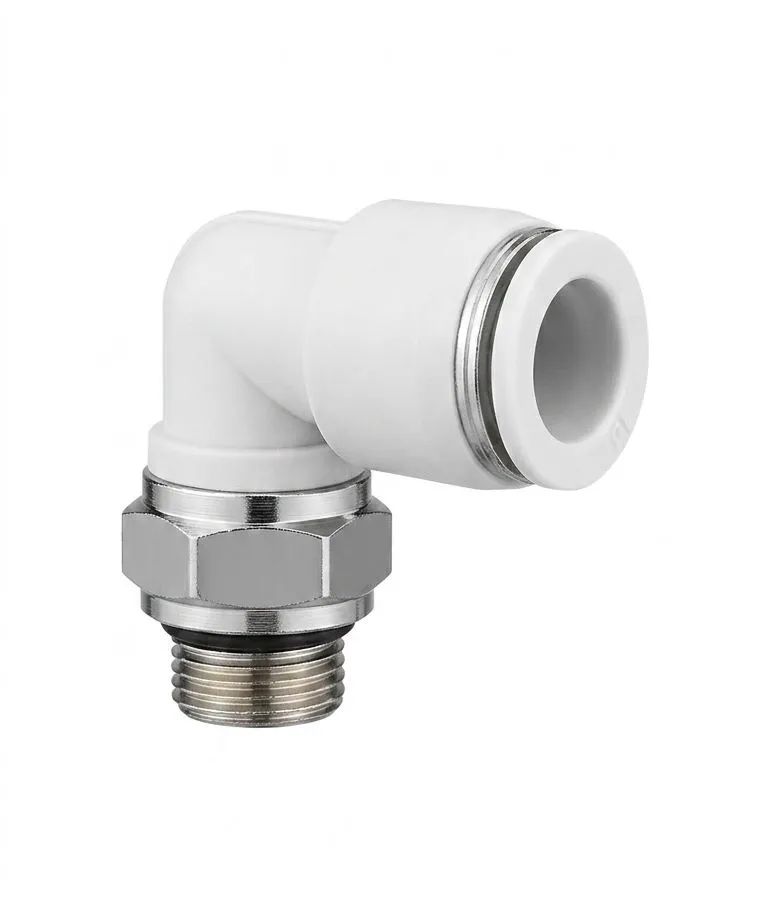

The AIRMIXS PL10-G01 is a high-performance, compact pneumatic 90-degree swivel elbow fitting engineered for reliable, high-flow air line connections. Featuring a quick-releasing push-to-connect collar, it allows for instant, tool-free installation of mid-sized 10mm outer diameter tubing while maintaining an airtight, high-pressure seal. This model pairs a sleek, durable white composite body with a rugged chrome/nickel-plated brass connection base. Outfitted with a parallel G1/8" thread and a pre-installed rubber O-ring gasket, it guarantees a 100% leak-free joint straight out of the box without the hassle of manual Teflon tape wrapping, making it highly efficient for industrial machinery, packaging lines, and high-density automation systems.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL10-G01 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 10 mm |
Thread Connection Size | G 1/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
