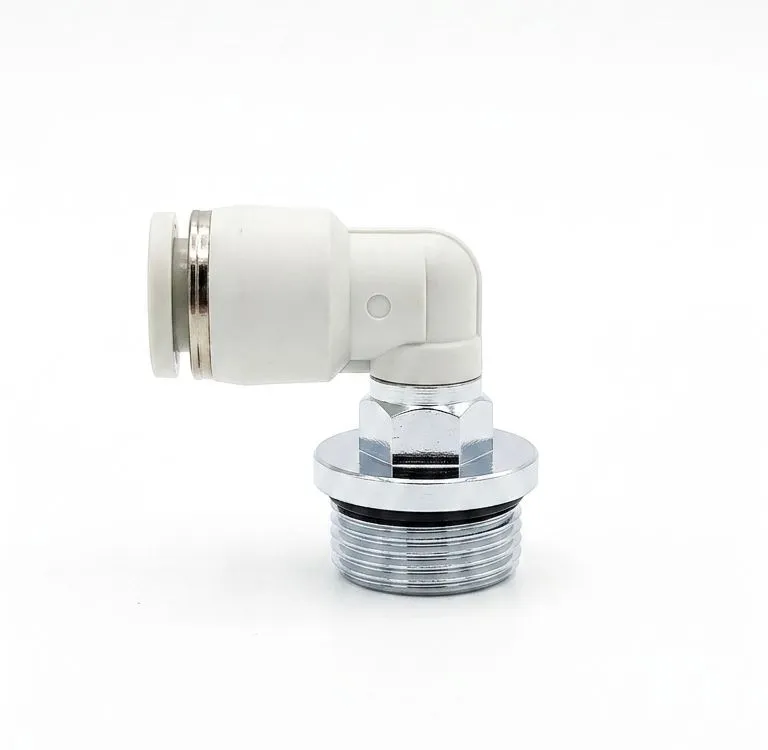

The AIRMIXS PL08-G03 is a high-performance, mid-capacity pneumatic 90-degree swivel elbow fitting engineered for seamless connection of industrial air lines. Outfitted with an integrated one-touch push-to-connect sleeve, it allows for instant, tool-free installation of standard 8mm outer diameter tubing while establishing a reliable, high-pressure seal. This model features a rugged white composite body paired with a wider, high-shine chrome/nickel-plated brass connection base. Equipped with a parallel G3/8" thread and a pre-installed rubber O-ring gasket, it provides absolute leak protection straight out of the box without requiring messy Teflon tape, making it ideal for standard industrial manifolds, automated assembly equipment, and pneumatic control systems.
Key Features
One-Touch Connection: High-precision push-to-connect mechanism firmly grips 8mm outer diameter tubing with uniform holding pressure.
360° Swivel Body: The elbow structure can rotate freely even after threading into place, allowing for flexible line routing and cleaner layouts around adjacent components.
G-Thread Parallel Sealing: Features a standard parallel G3/8" thread with an integrated nitrile rubber O-ring gasket for an instant, completely airtight joint.
Corrosion-Resistant Engineering: Built with rugged PBT plastic and a mirror-like chrome/nickel-plated brass base to withstand heavy industrial wear and tear.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL08-G03 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 8 mm |
Thread Connection Size | G 3/8" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
