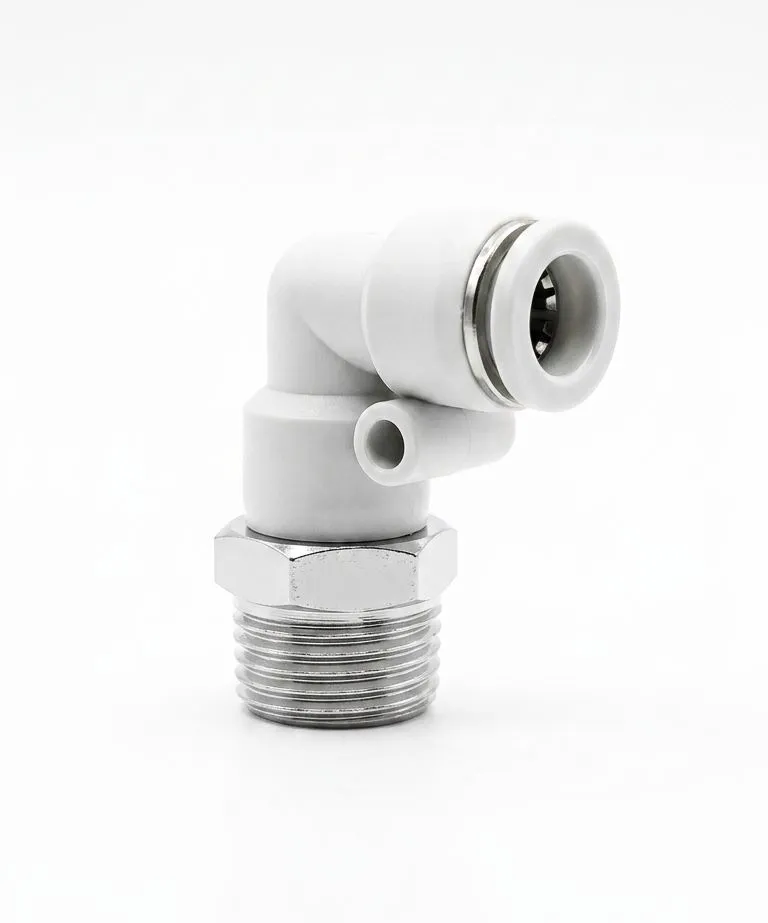

The AIRMIXS PL08-03 is a heavy-duty, mid-capacity pneumatic 90-degree swivel elbow fitting engineered for reliable, space-efficient air line installations. Featuring an intuitive one-touch push-to-connect collar, it allows for instant, tool-free connection of standard 8mm outer diameter tubing while maintaining a completely airtight, high-pressure seal. This model utilizes a rugged, lightweight white composite body paired with a strong, high-shine chrome/nickel-plated brass thread structure. Equipped with a standard R3/8" (PT3/8") tapered thread, it delivers robust holding power and seamless connection scaling for automated machinery, automotive production lines, and industrial pneumatic control manifolds.
Key Features
One-Touch Connection: High-precision push-to-connect mechanism firmly grips 8mm outer diameter tubing with uniform holding pressure.
360° Swivel Body: The elbow structure can rotate freely even after threading into place, allowing for flexible line routing and optimal layouts in narrow spaces.
Tapered Thread Scaling: Designed with an R3/8" (PT3/8" BSPT) tapered thread, providing a solid mechanical joint suitable for standard industrial air distribution systems.
Premium Corrosion-Resistant Finish: Built with high-strength PBT plastic and a mirror-like chrome/nickel-plated brass base to withstand intensive industrial wear and tear.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL08-03 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 8 mm |
Thread Connection Size | R 3/8" / PT 3/8" (BSPT Tapered Thread) |
Thread Sealing | Requires standard Teflon (PTFE) tape or liquid sealant |
Fluid Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
