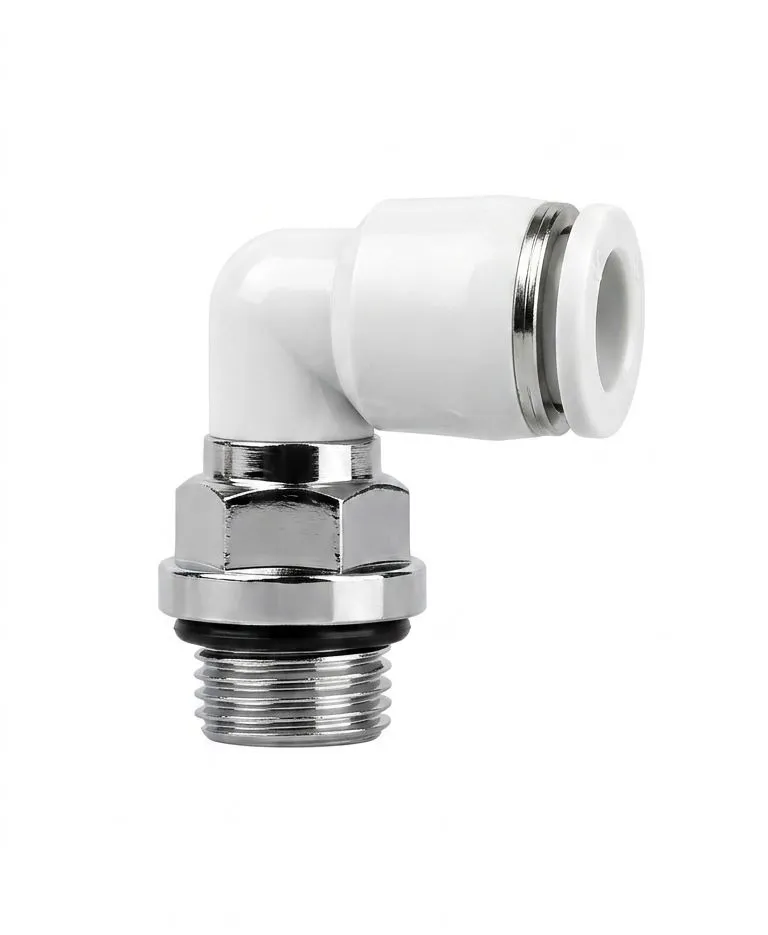

The AIRMIXS PL06-G02 is a compact, premium-grade pneumatic 90-degree swivel elbow fitting engineered for secure and highly efficient air line management. Outfitted with an integrated one-touch push-to-connect sleeve, it allows for instant, tool-free installation of standard 6mm outer diameter tubing while maintaining an airtight, reliable seal under pressure. This model features a sleek, durable white composite body paired with a heavy-duty chrome/nickel-plated brass connection base. Equipped with a parallel G1/4" thread and a pre-installed rubber O-ring gasket, it provides absolute leak protection straight out of the box without requiring messy Teflon tape, making it ideal for compact pneumatic systems, manifolds, and high-density automation panels.
Technical Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL06-G02 |
Fitting Type | 90° Male Swivel Elbow |
Tube Outer Diameter (OD) | 6 mm |
Thread Connection Size | G 1/4" (BSPP Parallel Thread) |
Thread Sealing | Integrated Nitrile Rubber (NBR) O-Ring |
Fluid Media | Compressed Air, Vacuum (Water permitted conditionally) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 150 PSI) |
Maximum Surge Pressure | 1.32 MPa |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Materials of Construction | Chrome/Nickel-Plated Brass, PBT Plastic Body, Stainless Steel Lock Claws |
