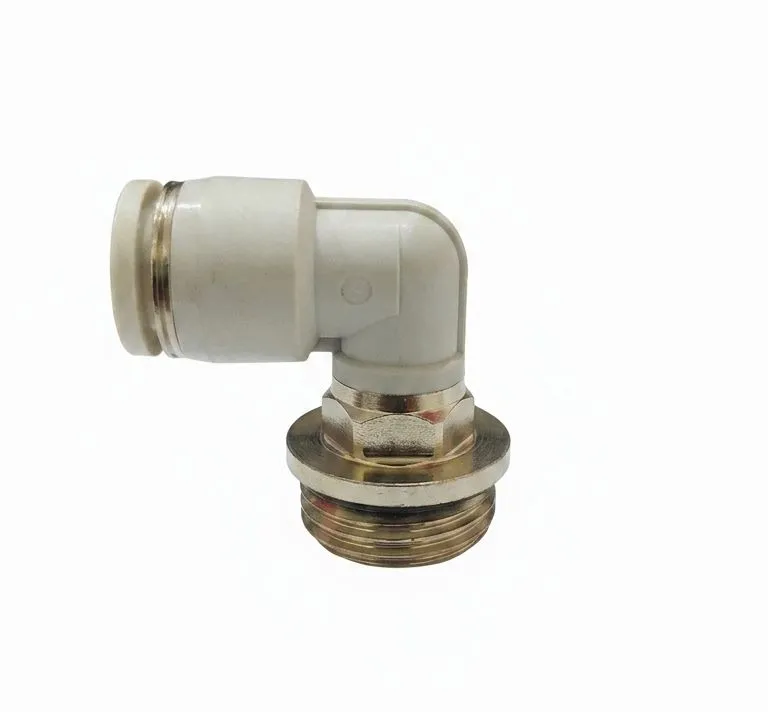

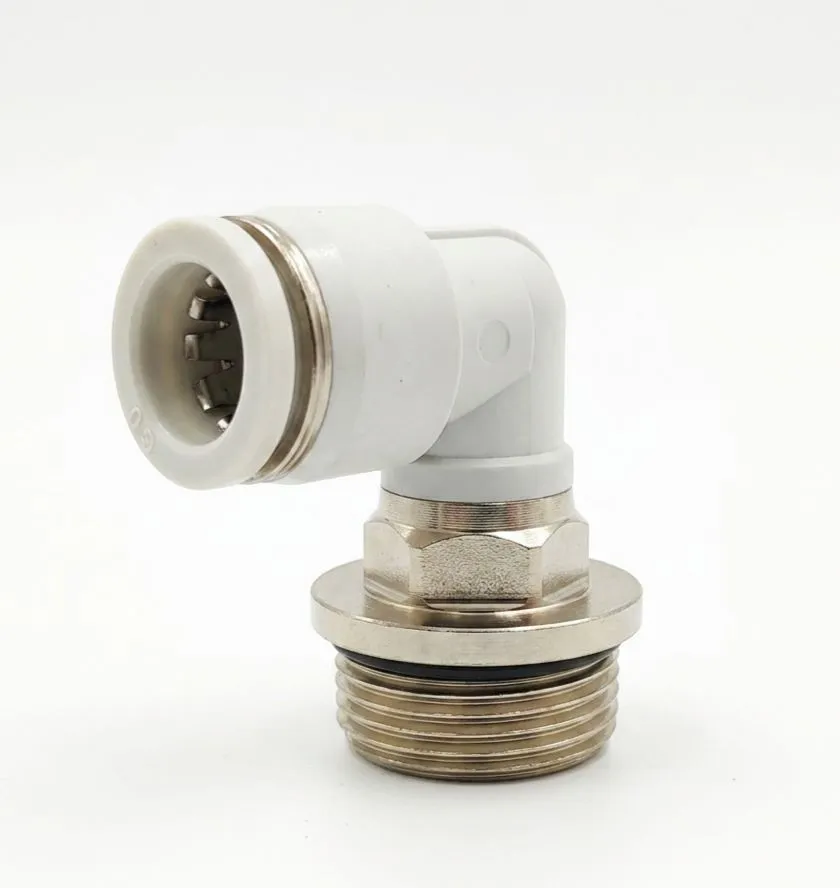

The AIRMIXS PL 10-G04 is a high-performance, 90-degree swivel male elbow push-to-connect fitting engineered for industrial automation. It features a robust composite body integrated with a nickel-plated brass parallel thread connection to ensure a reliable, leak-free seal in demanding positive-pressure environments.
Designed with a 360° swivel action, this component provides maximum routing flexibility during installation, making it ideal for tight spaces in automation layouts, packaging machinery, and general industrial air tools. The easy-to-use one-touch release collet mechanism allows for swift tubing insertion and disconnection without the need for additional tools.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model Code | PL 10-G04 |
Fitting Type | 90° Swivel Male Elbow |
Connection Type | Push-to-Connect / One-Touch |
Applicable Tube O.D. | 10 mm |
Connection Thread | G 1/2" BSPP (Parallel Thread) |
Applicable Media | Compressed Air / Vacuum (Water depending on conditions) |
Operating Pressure Range | 0 to 10 bar (0 to 1.0 MPa) |
Operating Temperature | 0°C to 60°C |
Body Material | Industrial Composite / Polybutylene Terephthalate (PBT) |
Thread Material | Nickel-Plated Brass / Metal |
Sealing Element | O-Ring integrated on G-thread base |
