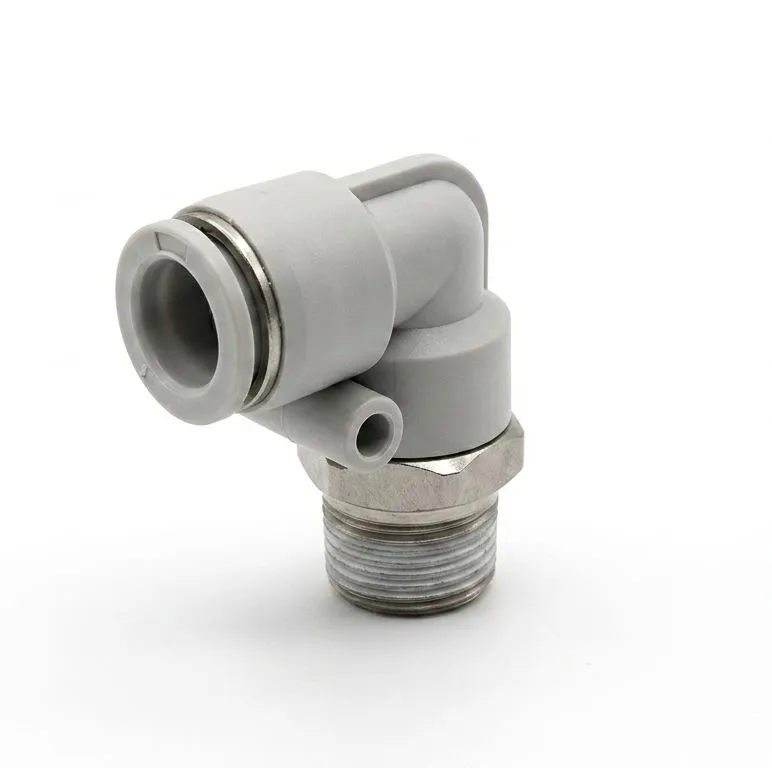

The AIRMIXS PL 10-01 is an industrial-grade, 90-degree push-to-connect male elbow fitting designed for streamlined pneumatic piping networks. Built with a robust grey engineering composite body and a heavy-duty nickel-plated brass base, it provides an instantaneous, leak-proof connection for 10mm outer diameter (OD) tubing.
Its space-saving elbow layout allows for clean right-angle transitions in tight spaces, while the integrated swivel mechanism permits 360-degree rotation of the body after installation for precise line alignment. Engineered to withstand demanding automation environments, it offers low maintenance and high operational durability.
Key Features
One-Touch Connection: High-precision lock claw design allows for effortless, tool-free tube insertion and immediate secure sealing.
360° Swivel Geometry: The thread-to-body interface rotates smoothly post-installation to optimize directional routing and reduce tube stress.
Pre-Applied Thread Sealant: Male threads are pre-coated with a high-performance sealant layer to ensure immediate out-of-the-box installation without the need for additional Teflon tape.
Rugged Construction: Combines impact-resistant technical polymer with corrosion-resistant nickel-plated brass to extend overall service life.
Specification | Technical Data |
|---|
Model Number | PL 10-01 |
Fitting Type | 90° Male Elbow (Swivel Type) |
Port A (Tube Connection) | 10mm Tube OD |
Port B (Thread Connection) | 1/8" PT / BSPT / G (Male Thread) |
Body Material | Industrial Polymer Composite (Grey) |
Thread Base Material | Nickel-Plated Brass |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
