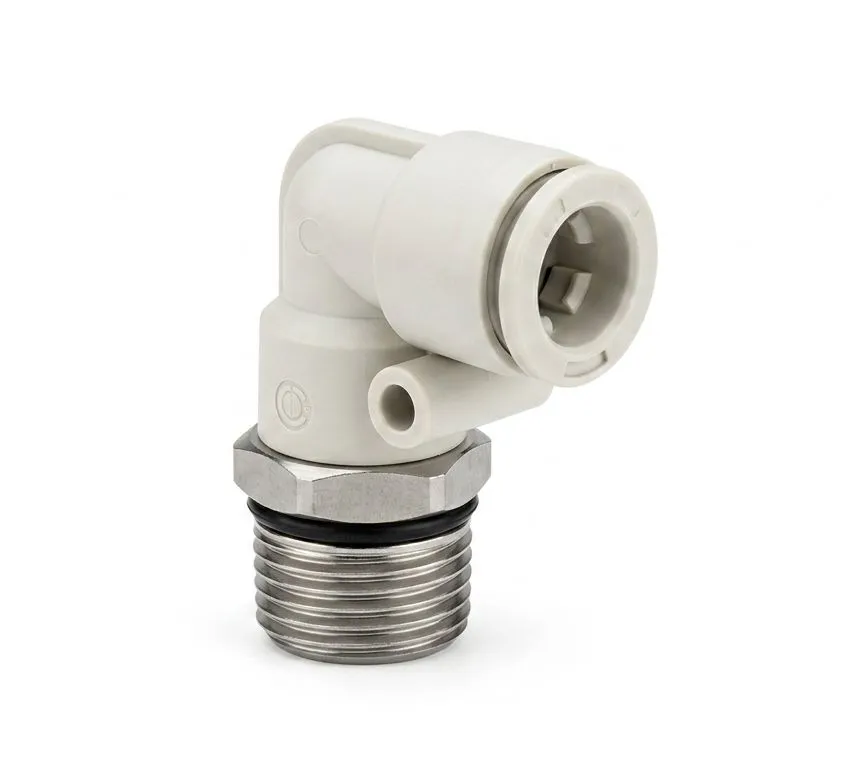

The AIRMIXS PL 08-G04 is an industrial-grade, 90-degree push-to-connect male elbow fitting engineered for secure routing in metric pneumatic networks. As seen in AIRMIXS PL08-G04.jpg, this premium fitting combines a clean white engineering composite body with a durable nickel-plated brass base to establish an instantaneous, leak-proof connection for 8mm outer diameter (OD) pneumatic tubing.
Equipped with a parallel G 1/2" thread and an integrated high-performance rubber O-ring, it delivers an airtight face-seal connection that completely eliminates the need for thread tape or liquid sealants. The compact right-angle layout allows for optimized routing in confined machine footprints, while the integrated 360-degree swivel mechanism lets you freely orient the upper body post-installation to eliminate line twisting and simplify tubing configuration.
Key Features
One-Touch Connection: High-precision internal lock claws provide instantaneous, tool-free tube insertion and maximum grip retention.
Parallel G Thread with O-Ring Seal: G 1/2" parallel thread features an integrated sealing washer on the shoulder, ensuring a rapid and reliable seal against the mating face.
360° Swivel Geometry: The technical composite body rotates smoothly on its nickel-plated brass base after installation for clean line alignment and reduced tube stress.
Industrial-Grade Construction: Built from impact-resistant polymer and heavy-duty brass to withstand high vibration, mechanical wear, and demanding automation environments.
Specification | Technical Data |
|---|
Model Number | PL 08-G04 |
Fitting Type | 90° Male Elbow (Swivel Type) |
Port A (Tube Connection) | 8mm Tube OD |
Port B (Thread Connection) | 1/2" G / BSPP (Parallel Male Thread) |
Seal Type | Integrated O-Ring Face Seal |
Body Material | Industrial Polymer Composite (White) |
Thread Base Material | Nickel-Plated Brass |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
