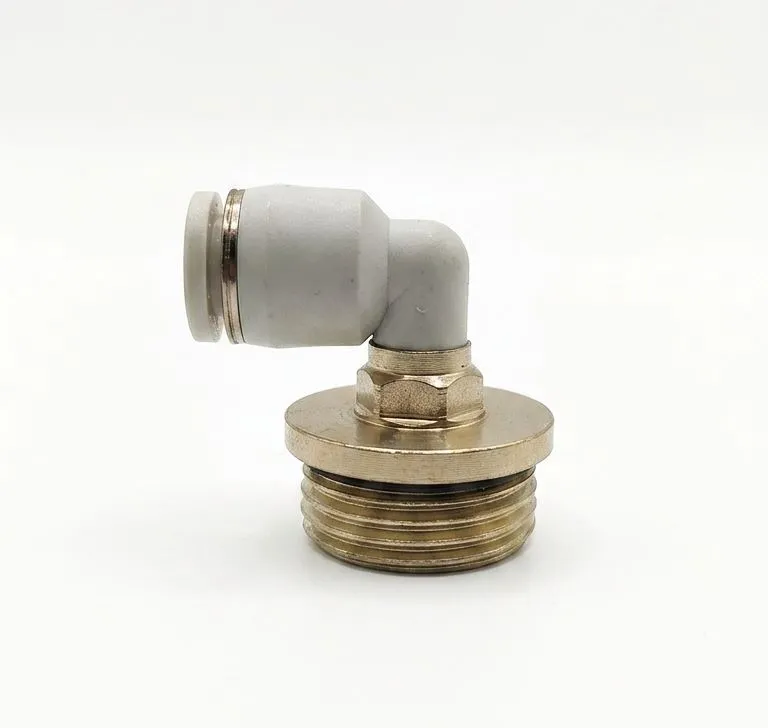

The AIRMIXS PL 06-G04 is a high-quality 90-degree swivel male elbow push-to-connect fitting designed for seamless integration in industrial pneumatic systems. This heavy-duty component facilitates a secure transition from 6mm OD tubing to a 1/2" parallel threaded port.
Engineered with a 360° rotatable body, it allows for maximum flexibility and precise positioning of air lines in tight or space-constrained installations. The fitting is constructed from a durable polymer body and nickel-plated brass for superior corrosion resistance and long-term reliability. Its user-friendly one-touch release collar enables rapid, tool-free tube connection and disconnection, reducing maintenance time in automation and control panel applications.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model Number | PL 06-G04 |
Fitting Type | 90° Swivel Male Elbow |
Connection Type | Push-to-Connect / One-Touch |
Applicable Tube O.D. | 6 mm |
Connection Thread | G 1/2" BSPP (Parallel Thread) |
Applicable Media | Compressed Air / Vacuum / Water |
Body Material | Industrial Polymer / Polybutylene Terephthalate (PBT) |
Thread Material | Nickel-Plated Brass |
Operating Pressure | 0 to 10 bar (0 to 1.0 MPa / 150 PSI) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | PU (Polyurethane), PA (Nylon), PE (Polyethylene) |
Internal Locking Claw | Stainless Steel (SUS304) |
