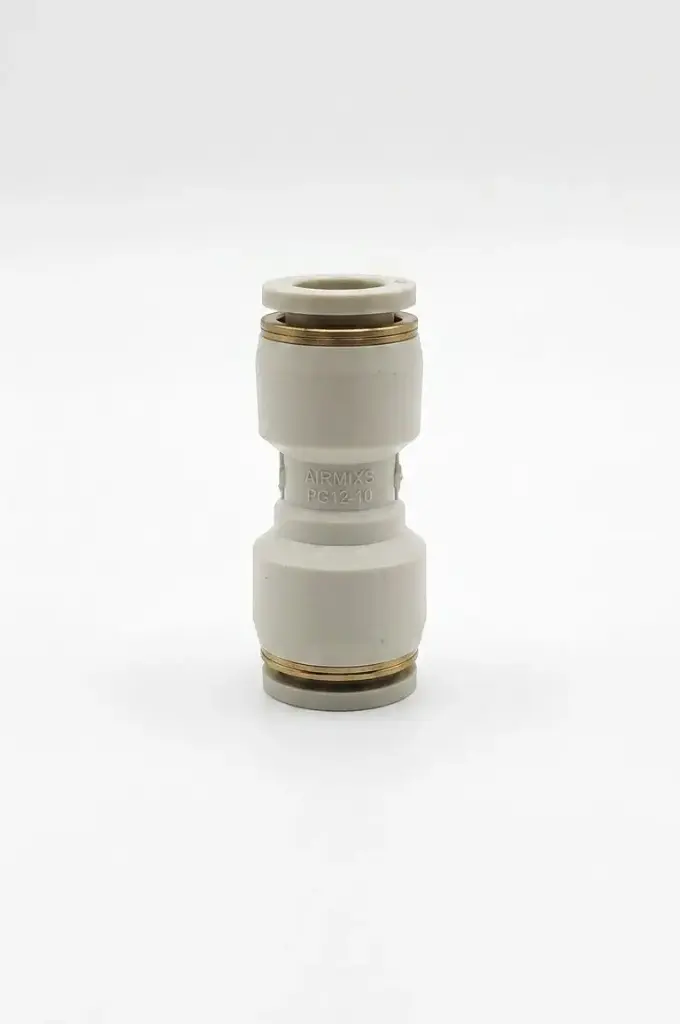

The AIRMIXS PG12-10 is a high-performance, composite push-to-connect union straight reducer designed for seamless connection between pneumatic tubes of different outer diameters. It connects a 12mm O.D. tube to a 10mm O.D. tube in-line. Engineered with a durable and lightweight PBT resin body and stainless steel lock-claws, this fitting ensures an airtight, secure grip on polyurethane (PU), nylon (PA), and polyethylene (PE) tubing. The convenient one-touch release sleeve allows for quick, tool-free installation and removal, optimizing maintenance time in tight spaces.
Parameter | Specification |
|---|
Model Number | PG12-10 |
Brand | AIRMIXS |
Tubing O.D. 1 (Port A) | 12 mm |
Tubing O.D. 2 (Port B) | 10 mm |
Body Material | PBT Plastic (Polybutylene Terephthalate) |
O-Ring / Seal Material | NBR (Buna-N) |
Lock Claw Material | Stainless Steel |
Release Ring Style | Round / Oval |
Operating Pressure | 0 to 1.0 MPa (0 to 150 psi) |
Proof Pressure | 3.0 MPa (435 psi) |
Negative (Vacuum) Rating | -100 kPa (-29.5 in. Hg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | PU, PA, PE, PVC |
Fluid Admitted | Air, Vacuum, Water |
