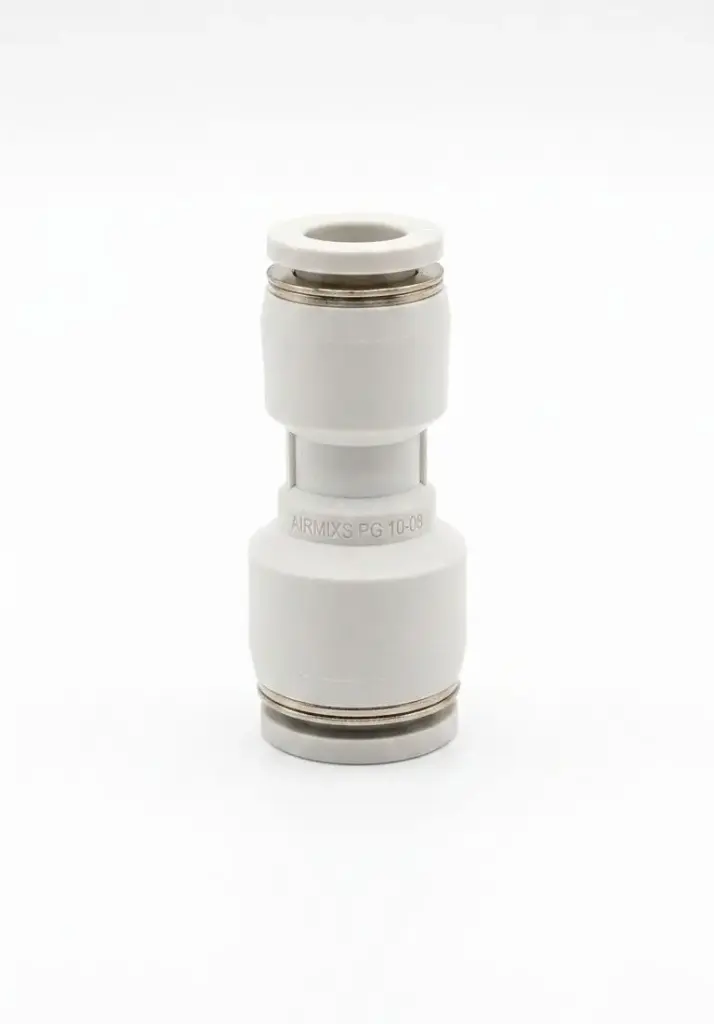

The AIRMIXS PG 10-08 union straight reducer push-to-connect fitting is designed to reduce and connect two different tubing sizes (10mm to 8mm) inline. Constructed from robust thermoplastic (PBT) and featuring a stainless steel lock claw, it ensures an airtight and secure connection in pneumatic applications.
Specification | Details |
|---|
Model | PG 10-08 |
Fitting Type | Straight Union Reducer |
Applicable Tube O.D. 1 | 10 mm |
Applicable Tube O.D. 2 | 8 mm |
Body Material | PBT Plastic |
Lock Claw Material | Stainless Steel (SUS) |
Operating Pressure | 0 ~ 1.0 MPa (0 to 150 psi) |
Proof Pressure | 3.0 MPa (435 psi) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | PU, PA, PE, and PVC |
