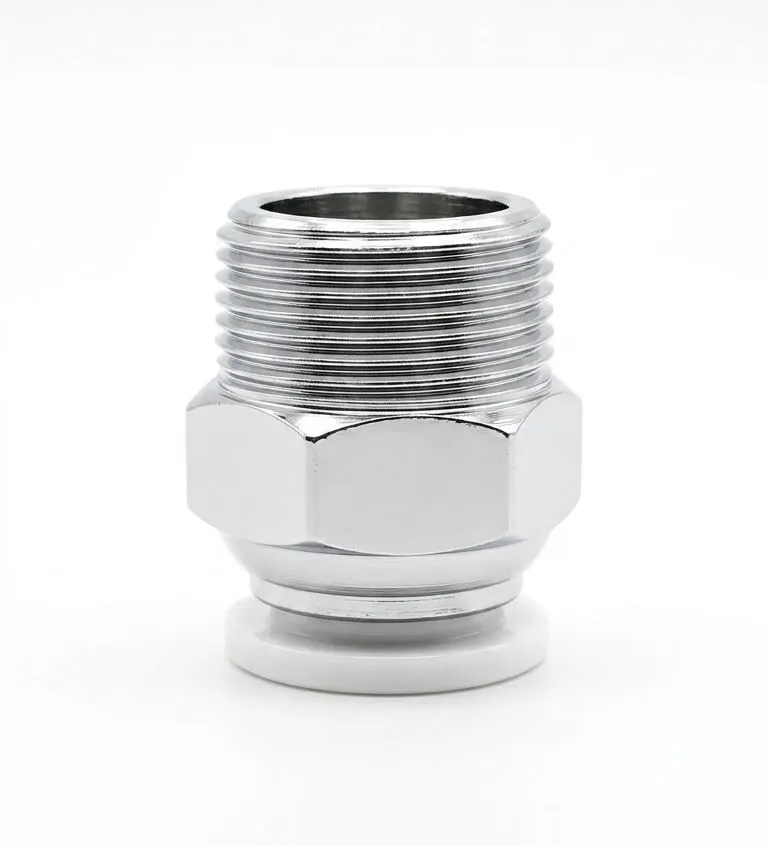

The AIRMIXS PC1/2-3/8is a commercial-grade, straight male push-to-connect fitting engineered for efficient, leak-free performance in demanding industrial automation and pneumatic systems.Featuring a premium nickel-plated brass body with a polished chrome-colored finish, this fitting provides excellent corrosion resistance, durability, and a clean, high-end aesthetic across your machinery configurations.
Equipped with an intuitive, tool-free push-in mechanism and a gray release collar, it allows for instant tube insertion and seamless disconnection without risk of line damage.The 3/8" male thread includes integrated sealing support to ensure an immediate, airtight seal against standard female ports, optimizing your assembly workflow and minimizing maintenance downtime.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model | PC-1/2-3/8 |
Fitting Type | Male Straight Connector |
Connection Thread | 3/8" PT / BSPT / G (Male Thread) |
Applicable Tube OD | 1/2" (12.7mm) |
Fluid Type | Compressed Air, Vacuum |
Body Material | Nickel-Plated Brass (Chrome Finish) |
Release Button Material | Heavy-duty Polyoxymethylene (POM) / Polyurethane |
Operating Pressure Range | 0 ~ 150 PSI (0 ~ 1.0 MPa) |
Negative Pressure | -29.5 in Hg (-100 kPa) |
Operating Temperature | 32 ~ 140°F (0 ~ 60°C) |
Lock Claw | Stainless Steel (SUS) |
Recommended Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
