AIRMIXS PB 12-04 Male Branch Teeis a premium, commercial-grade push-in pneumatic fitting engineered for high-performance and reliable industrial automation systems.Featuring a unique T-shaped profile, it seamlessly splits fluid lines by connecting two 12mm pneumatic tubes along the top run while branching off down to a heavy-duty R1/2 male taper pipe thread.

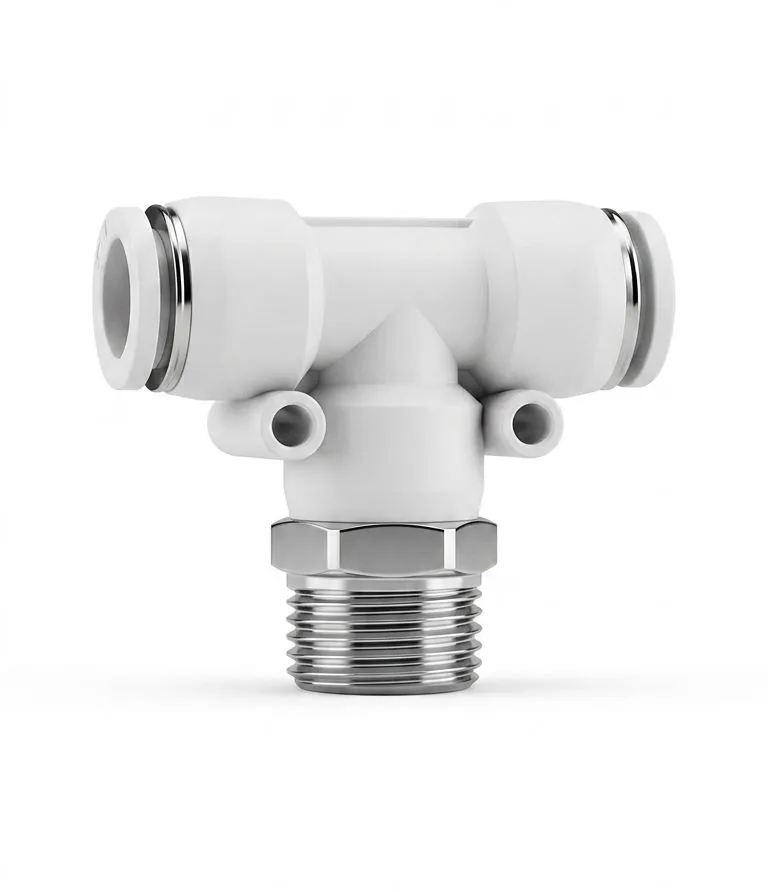

Built with robust Polybutylene Terephthalate (PBT) resin casing and electroless nickel-plated brass threads, it stands up to harsh industrial environments.It utilizes standard NBR lock-claws and internal elastic sleeves to grip the circumference of tubing evenly, ensuring a 100% leak-proof connection without compromising air path pressure. Highly adaptable, the upper push-in collar rotates freely even after threaded installation, permitting rapid changes to tubing direction and clean, centralized layouts. Refer to the referenced product file AIRMIXS PB 12-04.jpg for the complete visual assembly layout.
Technical Attribute | Specification Details |
|---|
Fitting Type | Push-in / One-Touch Male Branch Tee |
Tube Connection Size (Ports A & B) | $\phi$12 mm Outer Diameter (O.D.) |
Branch Connection Size (Port C) | R 1/2" Tapered Pipe Thread |
Applicable Fluid Medium | Compressed Air, Vacuum, Water (Conditional) |
Max. Operating Pressure | 1.0 MPa (approx. 145 PSI / 10 bar) |
Max. Vacuum Level | -100 kPa (-29.5 inHg) |
Operating Temperature Range | 0°C to 60°C (32°F to 140°F) No Freezing |
Body Material | Polybutylene Terephthalate (PBT Resin) |
Thread & Metal Construction | Brass with high-durability Electroless Nickel Plating |
Sealing / Elastic Sleeve Material | Nitrile Butadiene Rubber (NBR) |
Thread Coating | Factory-applied Pre-applied Sealant / Gasket Seal |
Compliance | RoHS2 Compliant |
