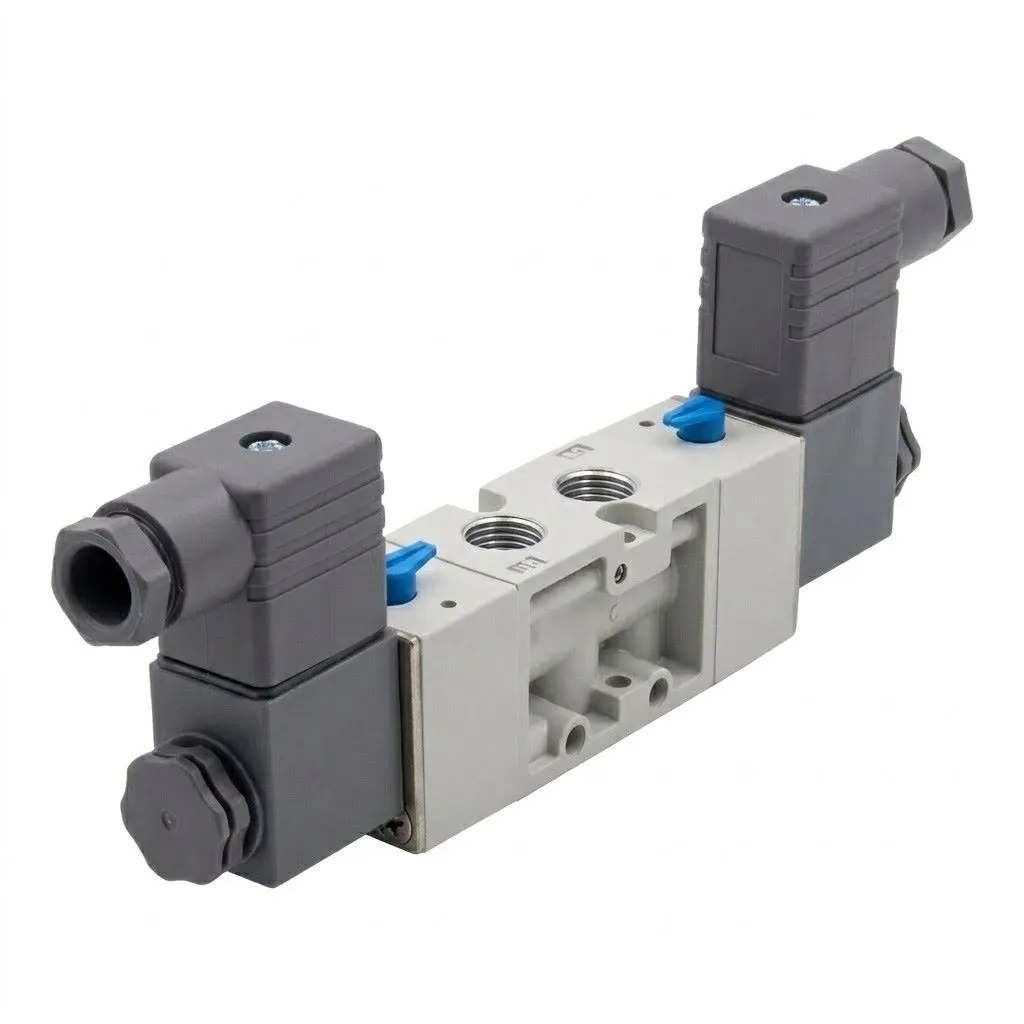

The AIRMIXS MVSC300-4E2P is a high-flow 5-port, 3-position pressure-center solenoid valve engineered for heavy-duty directional control of large double-acting pneumatic actuators. Featuring dual solenoid coils with a spring-centered pressure-center spool configuration, it continuously supplies full line pressure to both cylinder ports when de-energized. This maintains rigid holding force, prevents cylinder rod drop, and ensures positive locking during idle or emergency stop conditions.
Specification | Details |
|---|
Model | MVSC300-4E2P / MVS300-4E2P (Double Solenoid, Pressure Center) |
Valve Function | 5-Port, 3-Position (5/3-Way Pressure Center) |
Port Size | 3/8" (Inlet/Outlet/Exhaust Rc, G, or NPT thread options) |
Fluid / Medium | Filtered Air (40 μm minimum) |
Operating Pressure Range | 0.30 – 0.8 MPa (43.5 to 116 PSI) |
Proof Pressure | 1.0 MPa (145 PSI) |
Effective Orifice Area | 25 mm² (Cv ≈ 1.39) |
Response Time | ≤ 50 ms |
Operating Temperature | -5°C to +50°C (Non-freezing) |
Voltage Options | DC 24V, AC 110V, AC 220V (50/60Hz) |
Power Consumption | DC: ~2.0W – 2.5W / AC: ~4.9VA – 6.0VA |
Protection & Insulation Class | IP65 / Class F Insulation |
Electrical Entry | DIN Connector (with optional LED indicator) / Lead Wire |
Approximate Weight | ~550g |
