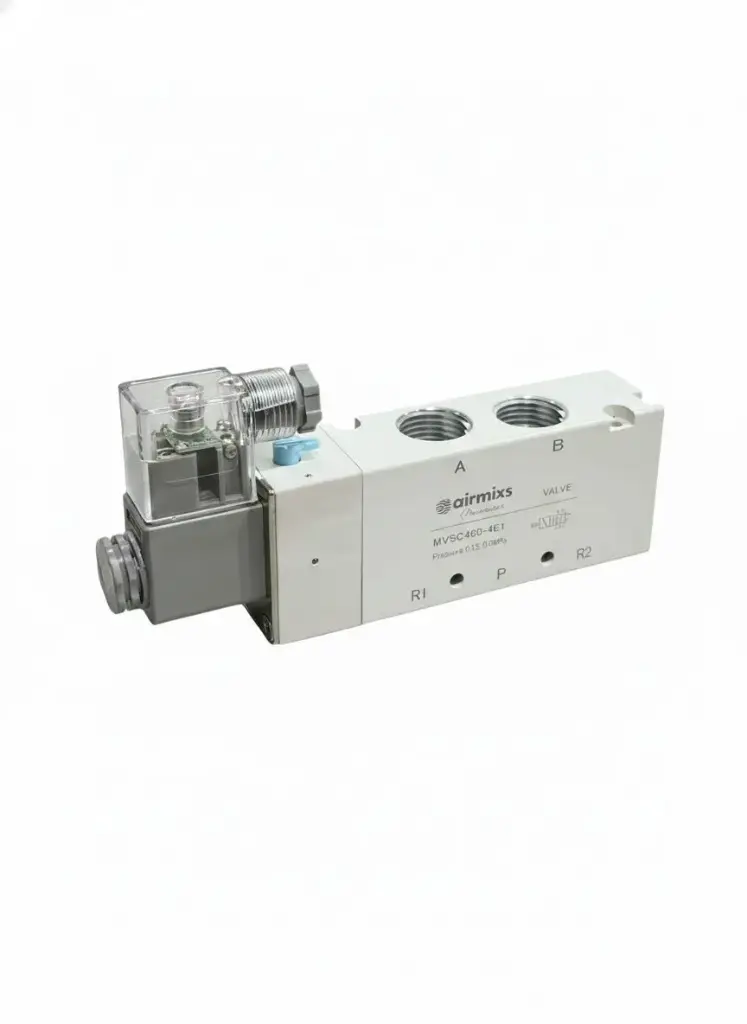

The MVSC-460-4E1 is an industrial-grade solenoid valve optimized for the rapid control of large double-acting pneumatic cylinders. Its robust 1/2" porting provides superior airflow (Cv 3.8), making it the primary choice for heavy machinery, automotive assembly lines, and high-volume packaging systems.
Feature | Specification |
|---|
Model | MVSC-460-4E1 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Single Solenoid(Spring / Air Return) |
Port Size | 1/2" NPT / G(Inlet, Outlet, and Exhaust) |
Effective Orifice | 50 $mm^2$(Cv $\approx$3.8) |
Flow Capacity | ~178 CFM at 80 PSI |
Operating Pressure | 0.2 – 0.8 MPa(24 to 116 PSI) |
Response Time | $\leq$50 ms |
Operating Temp. | -5°C to 50°C (Non-freezing) |
Power Consumption | DC: 2W - 2.5W / AC: 4.4VA - 6VA |
Weight | ~339g |
