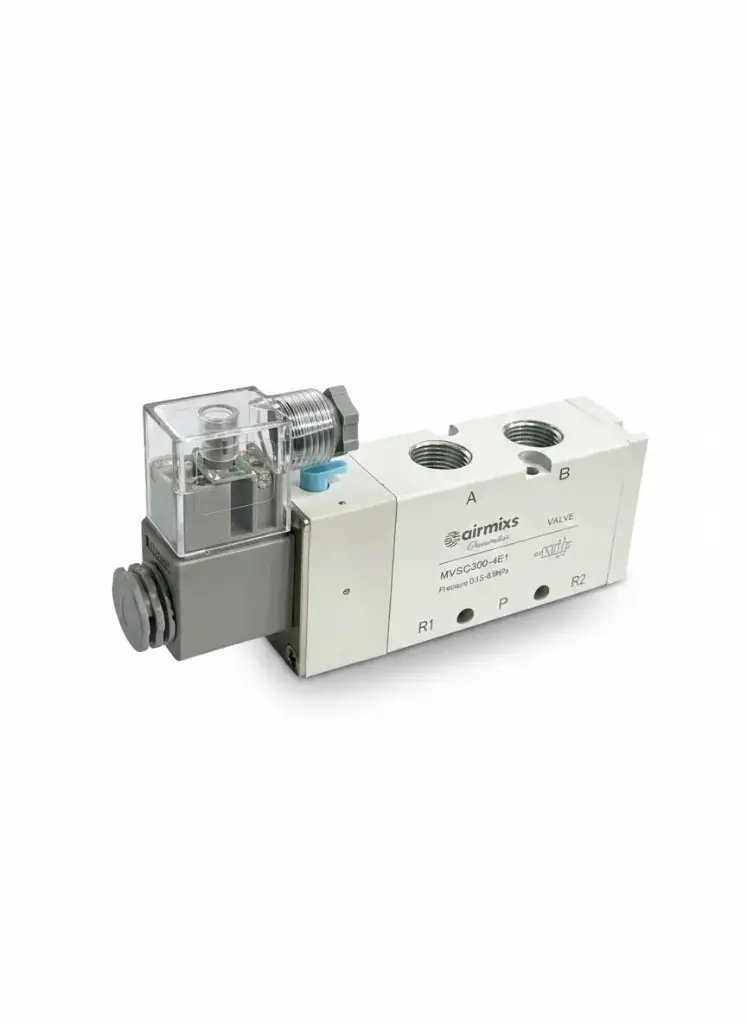

The MVSC-300-4E1 is a robust control valve optimized for the rapid operation of medium-to-large double-acting pneumatic cylinders. Its 3/8" porting ensures high-volume airflow, allowing for faster extension and retraction cycles in heavy industrial environments.
Feature | Specification |
|---|
Model | MVSC-300-4E1 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Single Solenoid(Spring Return) |
Port Size | 3/8" (G / PT / NPT) |
Effective Orifice | 35 $mm^2$(Cv $\approx$1.9) |
Operating Pressure | 0.2 – 0.8 MPa(29 to 116 PSI) |
Response Time | $\leq$40 ms |
Operating Temp. | -5°C to 50°C (Non-freezing) |
Power Consumption | DC: 2.5W / AC: 4.9VA |
Protection Class | IP65(Dust and Water-Jet Resistant) |
