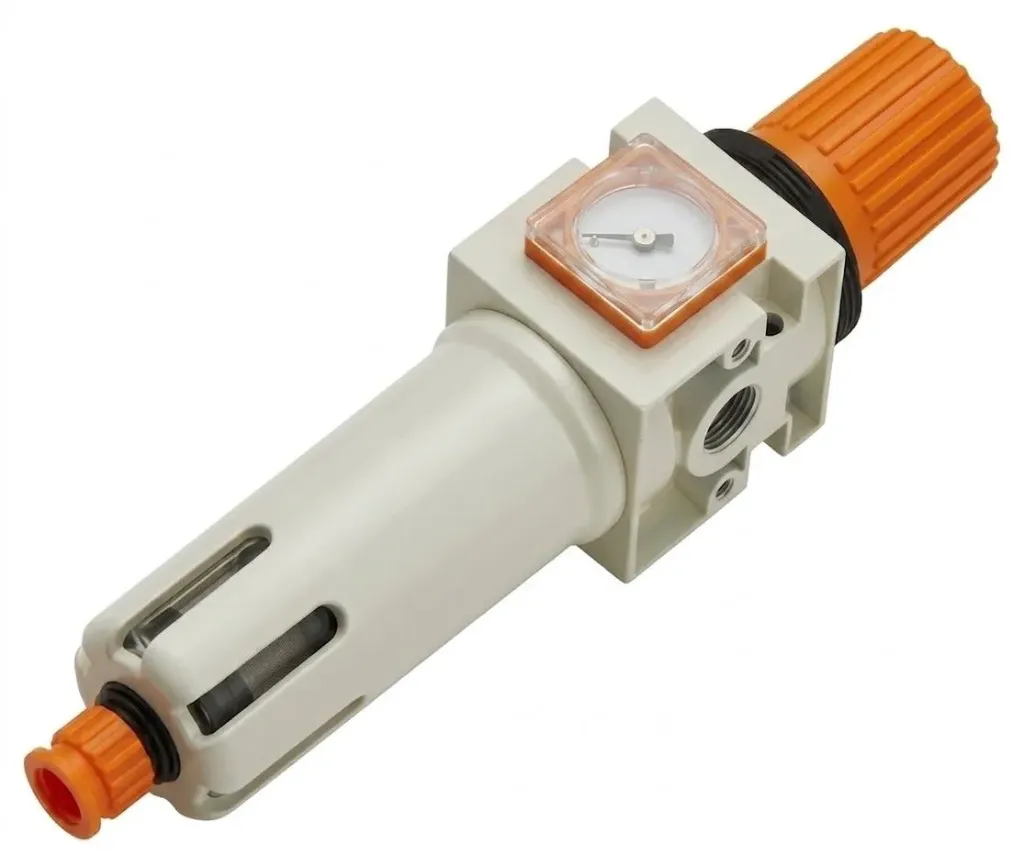

The AIRMIXS MFR-MINI-30N-1/4 Mini Filter Regulator is an upgraded, high-capacity compressed air treatment unit engineered for precision pressure control and multi-stage moisture/particle separation in industrial pneumatic systems. Featuring a G 1/4" port size with enhanced internal flow channels, this unit cleans incoming air lines and maintains steady, vibration-resistant downstream operating pressure even under fluctuating inlet conditions.
Built with a rugged die-cast aluminum housing and a transparent polycarbonate bowl with a protective metal cage, it allows operators to visually monitor condensate levels easily. The ergonomic top-adjustment knob features a push-to-lock detent mechanism to prevent accidental adjustment caused by machine vibrations. Complete with an integrated pressure gauge and mounting bracket, it is ideal for medium-to-high flow assembly lines, air tools, and automated pneumatic control panels.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | MFR-MINI-30N-1/4 |
Component Type | High-Flow Mini Filter Regulator (2-in-1 Air Preparation Unit) |
Port Size | G 1/4" (BSP) |
Pressure Gauge Port | G 1/8" |
Filtration Rating | 40 µm (Standard) / 5 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.6 MPa (16 Bar / 232 PSI) |
Pressure Regulation Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 Bar / 7 – 175 PSI) |
Nominal Flow Rate | ~1,800 – 2,000 L/min |
Drain Type | Manual / Semi-Automatic Drain |
Body Material | Die-Cast Aluminum |
Bowl Material | Polycarbonate with Protective Guard |
Working Temperature Range | -10°C to +60°C (14°F to 140°F) |
Working Medium | Compressed Air / Inert Gases |
