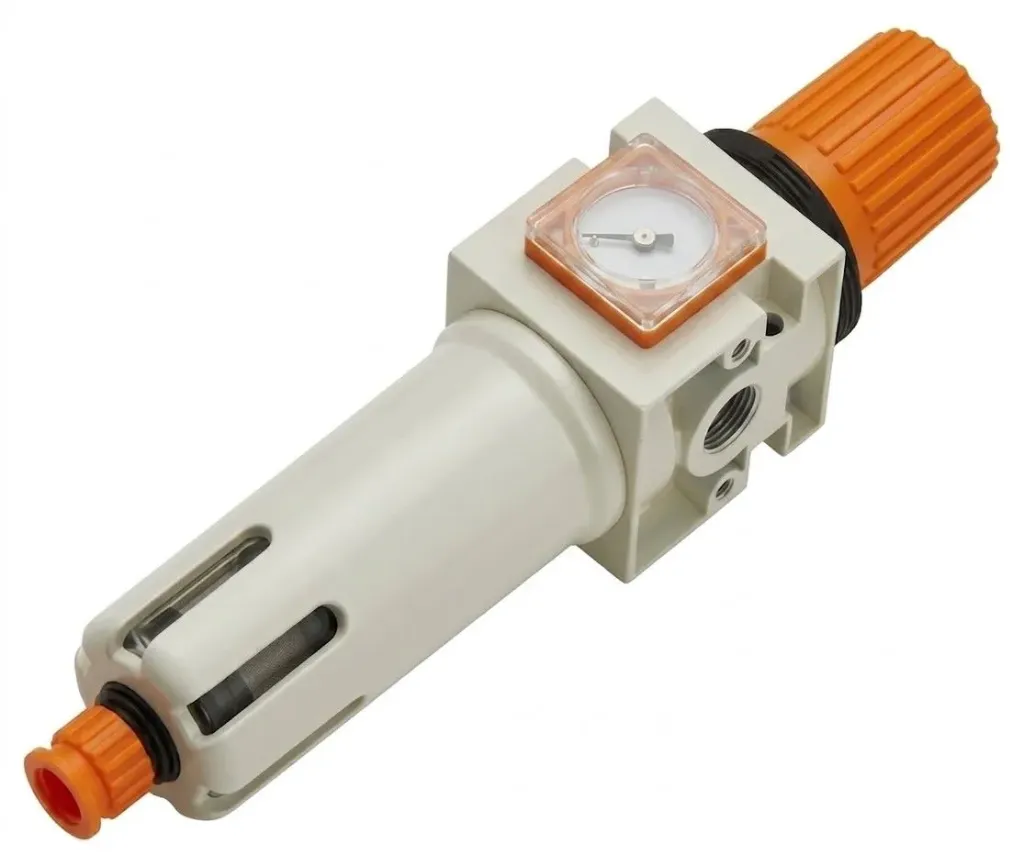

The AIRMIXS MFR-MINI-20N-1/4 Mini Filter Regulator is a space-saving compressed air preparation unit that combines a high-efficiency centrifugal filter with a precise pressure regulator. Engineered for industrial automation and pneumatic machinery, this 2-in-1 unit effectively separates moisture, liquid condensate, and solid particulates from supply lines while maintaining smooth, consistent downstream pressure for control valves and air cylinders.
Constructed with a durable die-cast aluminum body and a transparent polycarbonate bowl with a protective metal guard, it allows easy visual inspection of collected condensate levels. The top pressure adjustment knob features a push-lock detent mechanism to safeguard settings against machine vibration, while the front panel comes ready with an integrated pressure gauge for real-time monitoring.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | MFR-MINI-20N-1/4 |
Component Type | Mini Filter Regulator (2-in-1 Air Preparation Unit) |
Port Size | G 1/4" (BSP) |
Pressure Gauge Port | G 1/8" |
Filtration Rating | 40 µm (Standard) / 5 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.6 MPa (16 Bar / 232 PSI) |
Pressure Regulation Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 Bar / 7 – 175 PSI) |
Nominal Flow Rate | ~1,400 L/min |
Drain Type | Manual / Semi-Automatic Drain |
Body Material | Die-Cast Aluminum |
Bowl Material | Polycarbonate with Protective Guard |
Working Temperature Range | -10°C to +60°C (14°F to 140°F) |
Working Medium | Compressed Air / Inert Gases |
