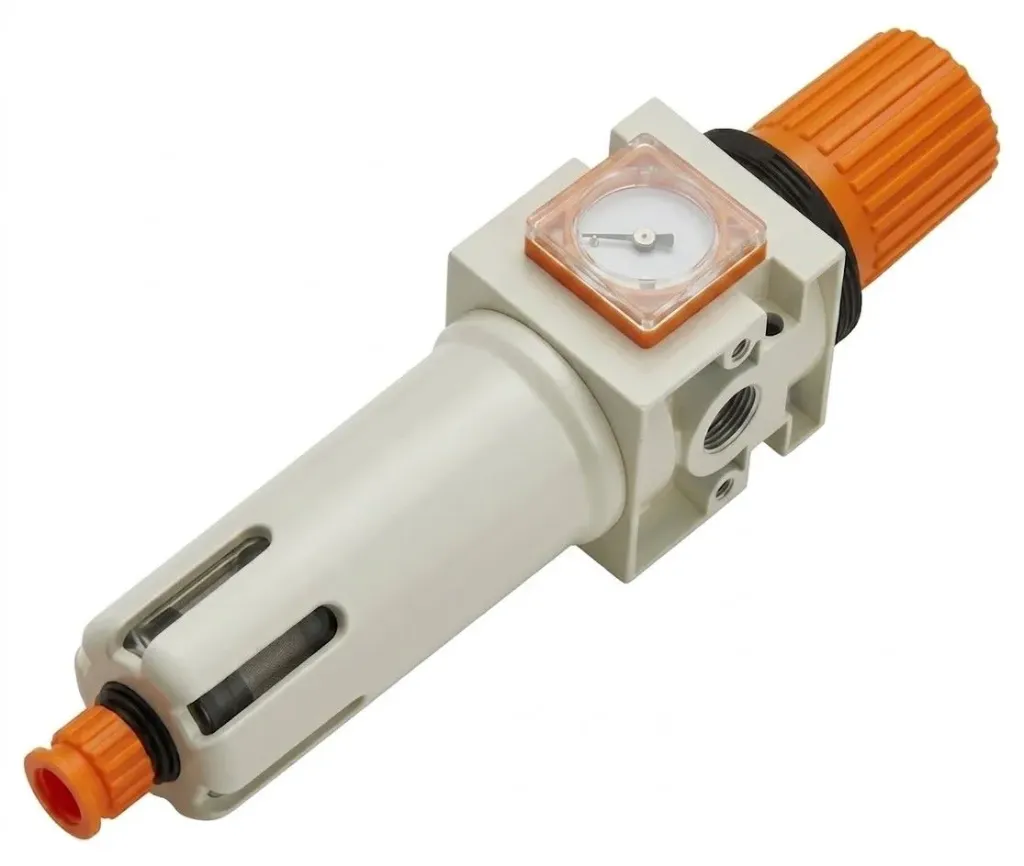

The AIRMIXS MFR-MIDI-40N-1/2 Air Filter Regulator is a high-flow, industrial-grade air treatment unit designed for heavy-duty compressed air filtration and precision pressure regulation. Featuring G 1/2" port connections and a expanded "MIDI" body housing, this unit efficiently removes liquid condensate, moisture, and solid contaminants from supply lines while maintaining high volumetric airflow and stable downstream pressure for large-bore cylinders, main air lines, and high-demand pneumatic equipment.
Built with a rugged die-cast aluminum housing and an impact-resistant bowl enclosed in a protective steel cage, it guarantees maximum operational durability in tough factory environments. The ergonomic top adjustment knob includes a push-to-lock detent mechanism to safeguard set pressures against heavy machine vibration, while the front panel port comes ready for direct pressure gauge installation.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | MFR-MIDI-40N-1/2 |
Series / Size | MIDI Series |
Component Type | Heavy-Duty Filter Regulator (2-in-1 Air Preparation Unit) |
Port Size | G 1/2" (BSP) |
Pressure Gauge Port | G 1/4" |
Filtration Rating | 40 µm (Standard) / 5 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.6 MPa (16 Bar / 232 PSI) |
Pressure Regulation Range ($p_2$) | 0.05 – 1.2 MPa (0.5 – 12 Bar / 7 – 175 PSI) |
Nominal Flow Rate | ~3,400 – 3,800 L/min |
Drain Type | Manual / Semi-Automatic Drain |
Body Material | Die-Cast Aluminum |
Bowl Material | Polycarbonate with Protective Steel Guard |
Working Temperature Range | -10°C to +60°C (14°F to 140°F) |
Working Medium | Compressed Air / Inert Gases |
