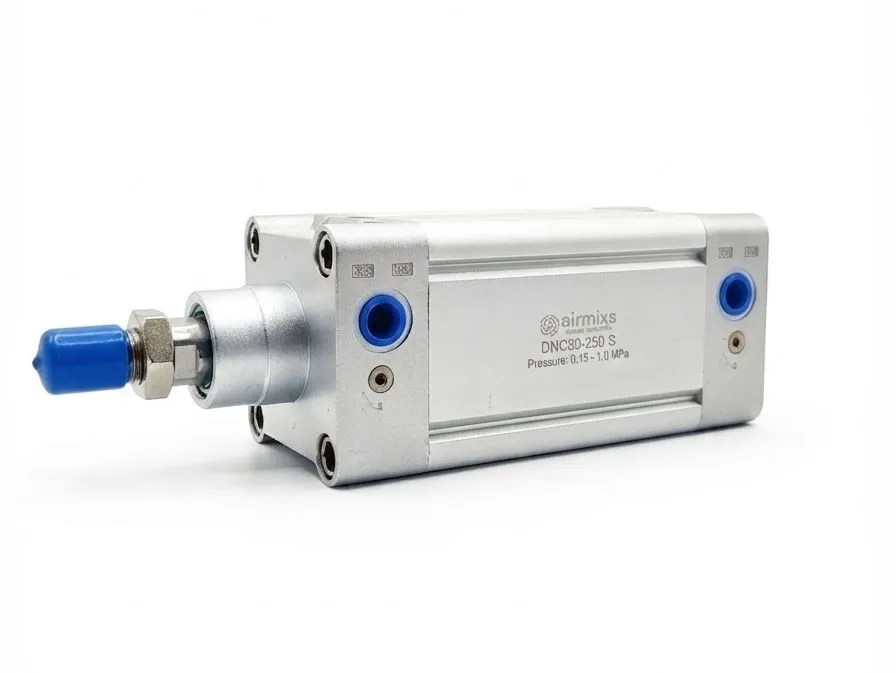

The DNC80-250 S is a robust double-acting standard pneumatic cylinder compliant with ISO 15552 specifications. Featuring an 80 mm bore size and a long 250 mm stroke, it is designed for demanding industrial applications requiring extended linear travel and dependable force generation. Equipped with adjustable pneumatic cushioning at both ends, it smoothly absorbs kinetic energy at the end positions to extend operational lifespan.
Specification Feature | Technical Parameter |
|---|
Model / Part No. | DNC80-250 S |
Brand | airmixs |
Bore Size | 80 mm |
Stroke Length | 250 mm |
Operation Mode | Double-Acting |
Operating Medium | Compressed Air (Filtered, lubricated or unlubricated) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar) |
Maximum Pressure | 1.5 MPa |
Cushioning | Adjustable pneumatic cushioning at both ends |
Port Size | G3/8 |
Piston Rod Thread | M20x1.5 |
Operating Speed Range | 50 to 500 mm/s |
Ambient Temperature | -20°C to 80°C |
Body Material | Anodized Aluminum Profile |
Seals Material | Polyurethane (PU) / NBR |
