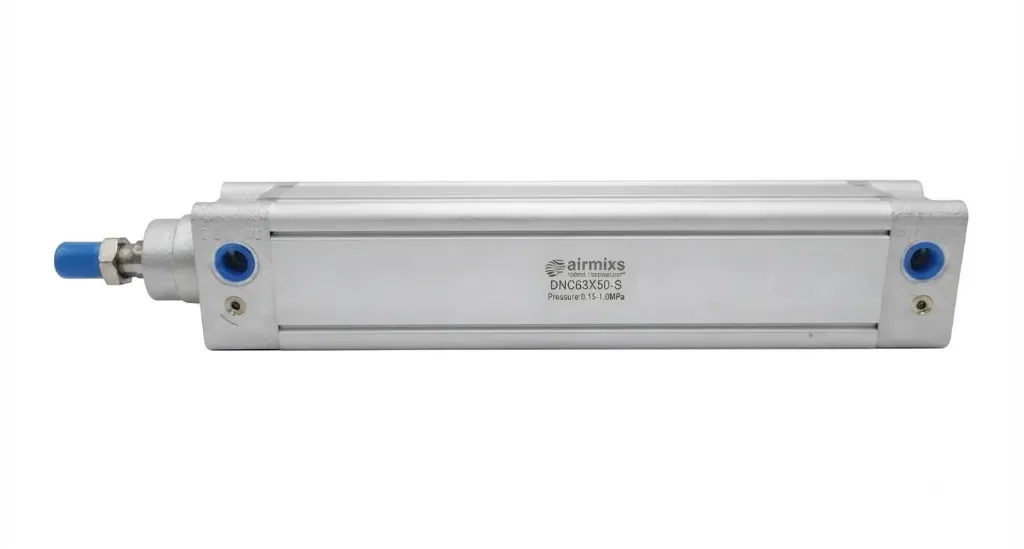

The airmixs DNC63-50-S is a double-acting standard pneumatic air cylinder designed in compliance with ISO 15552 (ISO 6431) standards, built for efficient linear actuation and industrial automation tasks. Featuring a 63mm bore size and a 50mm stroke length, this unit comes equipped with adjustable pneumatic cushioning at both ends to ensure smooth deceleration and reduced impact stress. Built with an anodized aluminum profile barrel and robust end caps, it provides reliable performance in harsh factory settings. Featuring a built-in magnetic piston as standard, it is fully compatible with magnetic reed and electronic proximity sensors for precise position feedback.
Technical Feature | Specification |
|---|
Brand | airmixs |
Model / Ordering Code | DNC63-50-S |
Actuator Type | Standard Pneumatic Cylinder (Double-Acting) |
Design Standard | ISO 15552 / ISO 6431 / VDMA 24562 |
Bore Diameter | 63 mm |
Stroke Length | 50 mm |
Operating Medium | Filtered, Lubricated, or Non-Lubricated Compressed Air |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar / 21.7 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar) |
Port Size / Thread | G3/8" |
Piston Rod Thread | M16x1.5 |
Cushioning Type | Adjustable Pneumatic Cushioning (Both Ends) |
Position Detection | Magnetic Piston (Standard) |
Operating Temperature Range | -20°C to 80°C (-4°F to 176°F) |
Body Material | Anodized Aluminum Alloy |
Piston Rod Material | Hard Chrome-Plated Carbon Steel / Stainless Steel Option |
