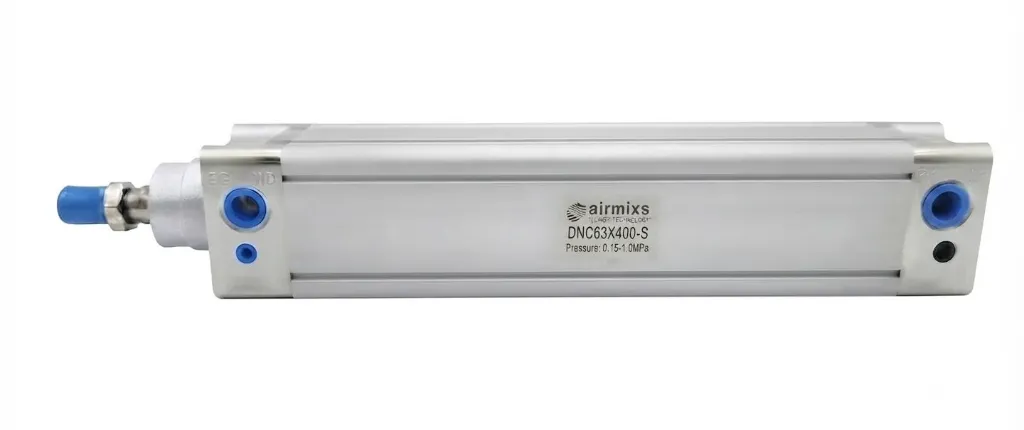

The AIRMIXS DNC63-400 S is an ISO 15552 compliant, double-acting standard pneumatic profile cylinder designed for robust linear actuation in automation machinery, long-reach handling, and heavy-duty industrial processing. Featuring a 63 mm bore diameter and an extended 400 mm stroke length, this cylinder provides strong, reliable pushing and pulling forces over an increased travel distance.
Engineered with an extruded anodized aluminum body containing slots for integrated sensor mounting, a hard chrome-plated carbon steel piston rod, and adjustable pneumatic end cushioning (PPV), the unit ensures smooth speed decelerations while absorbing end-of-stroke impact energy. The "S" designation indicates a built-in magnetic piston for effortless integration with external proximity sensors.
Characteristic / Parameter | Technical Value / Specification |
|---|
Brand / Manufacturer | AIRMIXS |
Model / Part Number | DNC63-400 S |
Standard Compliance | ISO 15552 / VDMA 24562 / DIN ISO 6431 |
Actuation Type | Double-Acting |
Bore Size | 63 mm |
Stroke Length | 400 mm |
Position Sensing | Integrated Magnetic Piston ("S" variant) |
Cushioning Type | Adjustable Pneumatic End Cushioning (PPV) |
Piston Rod Style | Single-ended, male thread (M16x1.5) |
Theoretical Force (at 6 bar) | Advance: ~1870 N / Return: ~1682 N |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Operating Pressure | 1.0 – 10.0 bar (0.1 – 1.0 MPa) |
Temperature Range | -20 °C to +80 °C |
Body Material | Anodized Aluminum Profile |
Piston Rod Material | Hard Chrome-Plated Carbon Steel |
Pneumatic Connection Port | G 3/8" |
