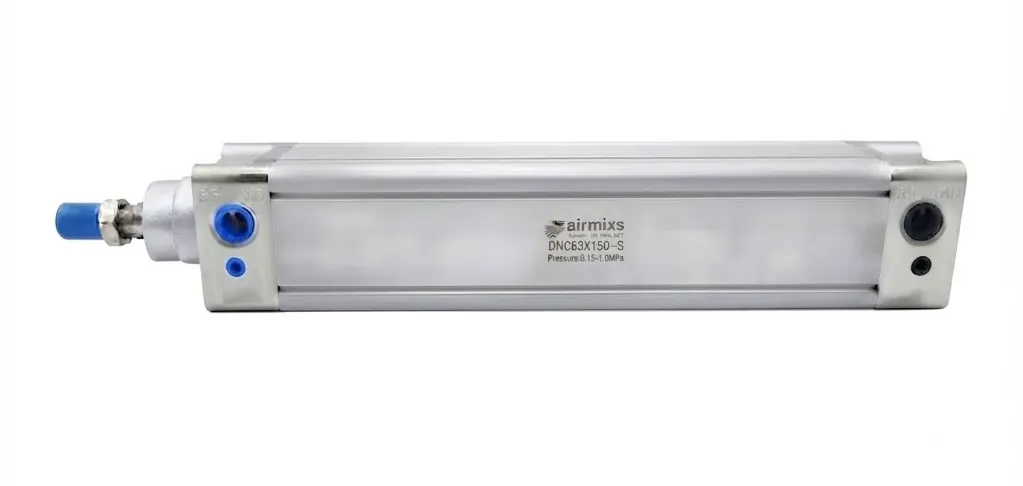

The airmixs DNC63-150-S is a double-acting standard pneumatic air cylinder engineered to ISO 15552 (ISO 6431) standards, designed to deliver strong linear actuation for industrial automation applications requiring a 150mm stroke length. Featuring a 63mm bore size, this cylinder incorporates adjustable pneumatic cushioning at both ends to absorb high impact energy, reduce operational noise, and ensure smooth, controlled movement at full extension. Built with a durable anodized aluminum profile barrel and rugged end caps, it provides reliable performance under demanding factory conditions. Equipped with a standard magnetic piston, it enables simple integration with magnetic proximity sensors for accurate position detection.
Technical Feature | Specification |
|---|
Brand | airmixs |
Model / Ordering Code | DNC63-150-S |
Actuator Type | Standard Pneumatic Cylinder (Double-Acting) |
Design Standard | ISO 15552 / ISO 6431 / VDMA 24562 |
Bore Diameter | 63 mm |
Stroke Length | 150 mm |
Operating Medium | Filtered, Lubricated, or Non-Lubricated Compressed Air |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar / 21.7 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar) |
Port Size / Thread | G3/8" |
Piston Rod Thread | M16x1.5 |
Cushioning Type | Adjustable Pneumatic Cushioning (Both Ends) |
Position Detection | Magnetic Piston (Standard) |
Operating Temperature Range | -20°C to 80°C (-4°F to 176°F) |
Body Material | Anodized Aluminum Alloy |
Piston Rod Material | Hard Chrome-Plated Carbon Steel / Stainless Steel Option |
