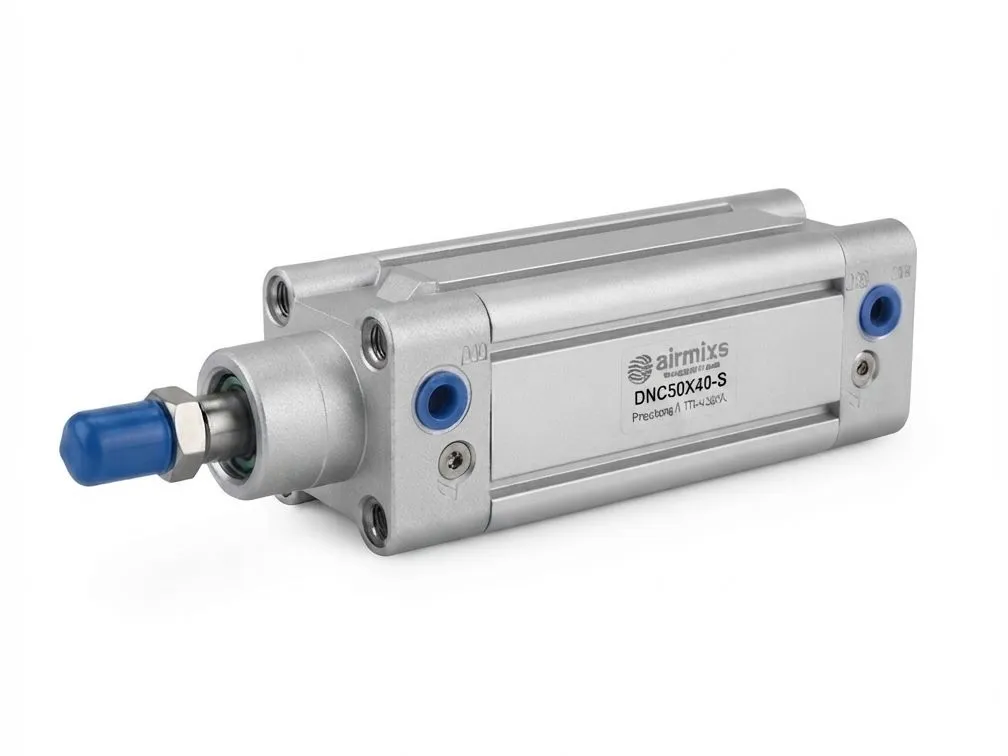

The DNC50-40 S is a robust, double-acting standard pneumatic air cylinder designed for heavy-duty industrial automation and motion control applications. Built to ISO 15552/VDMA 24562 standards, this 50mm bore cylinder delivers reliable linear force with an adjustable cushioning system to reduce impact and noise at the end of strokes. Featuring a corrosion-resistant aluminum profile barrel, a durable stainless steel piston rod, and integrated magnetic positioning sensors, it is engineered for long service life in demanding pneumatic circuits.
Specification | Details |
|---|
Model / Series | DNC50-40-S (DNC Series ISO Cylinder) |
Bore Diameter | 50 mm |
Stroke Length | 40 mm |
Action Type | Double Acting |
Fluid | Compressed Air (Filtered, lubricated or non-lubricated) |
Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar / 14 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 215 PSI) |
Operating Temperature | -20°C to 80°C (-4°F to 176°F) |
Port Size | G1/4" |
Cushion Type | Adjustable Pneumatic Cushioning on both end covers |
Auto Switch Capability | Magnet included as standard for proximity sensor mounting |
Body Material | Anodized Aluminum Alloy |
Piston Rod Material | Carbon Steel (Hard chrome plated) / Stainless Steel option |
