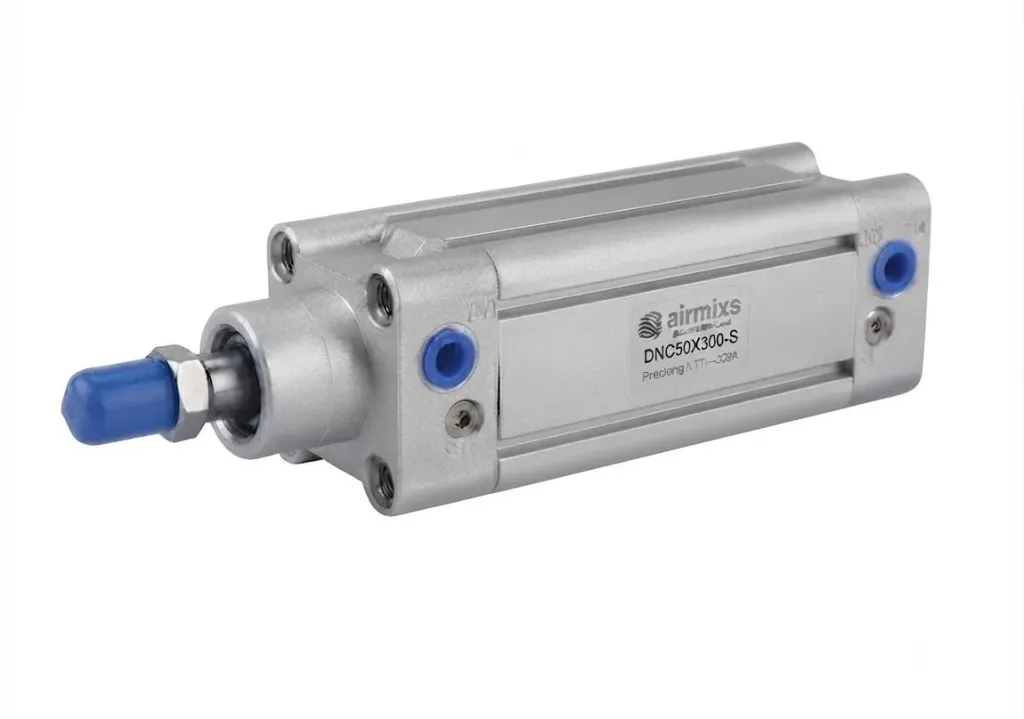

The AIRMIXS DNC50-300 is a heavy-duty, double-acting profile pneumatic cylinder built to ISO 15552 (Festo DNC profile style) international standards. Featuring a 50 mm bore diameter and a 300 mm stroke length, this actuator provides powerful linear force and reliable positioning for automated production lines, heavy clamping systems, and material handling machinery.
Constructed with a high-grade anodized aluminum profile body with integrated proximity sensor grooves, a hard chrome-plated steel piston rod, and adjustable pneumatic end-cushioning, the DNC series ensures smooth end-of-stroke deceleration, reducing mechanical wear and operational noise in continuous industrial environments.
Feature / Specification | Technical Value |
|---|
Brand / Manufacturer | AIRMIXS |
Model / Part Number | DNC50-300 |
Standard / Profile Standard | ISO 15552 (ex VDMA 24562 / NF C32-050) |
Actuation Type | Double-Acting |
Cylinder Bore Diameter | 50 mm |
Stroke Length | 300 mm |
Piston Rod Thread | Male M16 $\times$1.5 |
Pneumatic Port Connection | G 1/4" (BSPP Female) |
Operating Pressure Range | 1.0 to 10.0 bar (0.1 to 1.0 MPa / 14.5 to 145 PSI) |
Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Cushioning Type | Adjustable Pneumatic Cushioning at Both Ends (PPV) |
Position Sensing | Magnetic Piston (Integrated sensor slots for T-slot proximity switches) |
Material Type | Extruded Anodized Aluminum Barrel, Hard Chrome-Plated Carbon Steel Piston Rod, Die-Cast Aluminum End Caps, NBR / Polyurethane (PU) Seals |
Working Medium | Filtered Compressed Air (Lubricated or Non-Lubricated) |
Primary Applications | Industrial automation, material handling systems, linear actuation, automated clamping, and packaging equipment |
