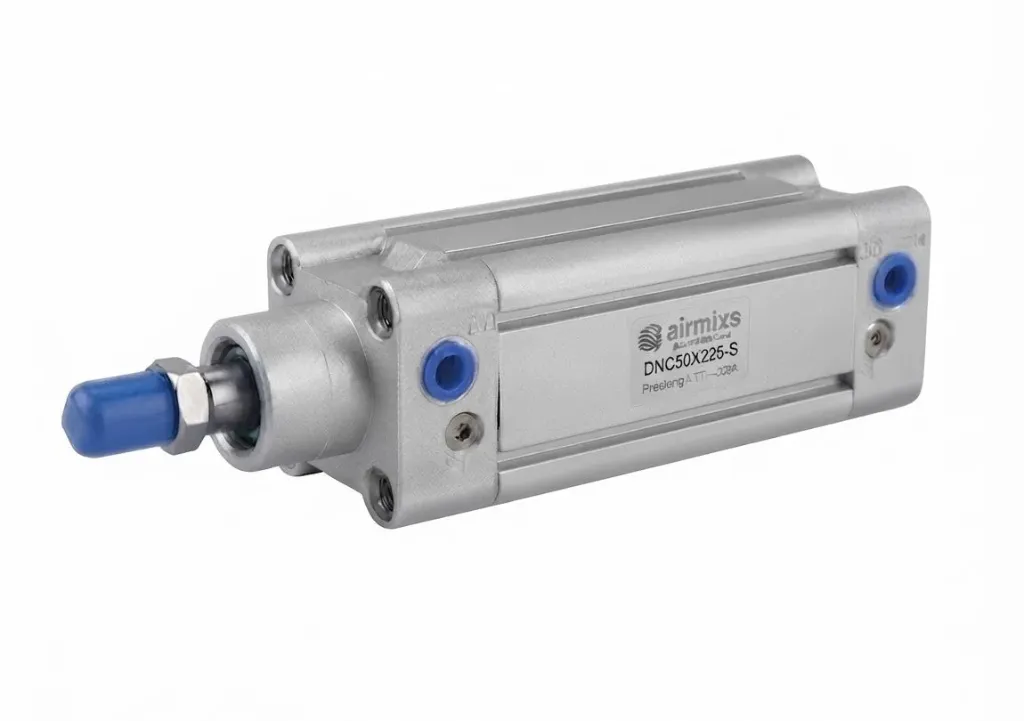

The AIRMIXS DNC-50-225-S is a high-performance ISO 15552 standard profile pneumatic cylinder designed for precise, double-acting linear motion in industrial automation setups.Featuring a 50 mm piston bore and a 225 mm stroke length, this actuator delivers heavy-duty force during both extension and retraction strokes.
It comes standard with an integrated magnetic piston ("-S" series) for precise position sensing via proximity switches and adjustable air cushioning at both end positions to absorb kinetic impact, reduce noise, and extend mechanical service life.The extruded aluminum profile barrel includes integrated sensor slots, making installation clean, compact, and highly reliable across automated assembly lines, packaging machinery, and material handling systems.
Specification Parameter | Technical Data |
|---|
Brand | AIRMIXS |
Model Code | DNC50-225 S (DNC-50-225-S-A) |
Standard Compliance | ISO 15552 / ISO 6431 / VDMA 24562 |
Action Type | Double-acting, Single rod |
Piston Bore Diameter | 50 mm |
Stroke Length | 225 mm |
Piston Rod Thread | M16 x 1.5 (Male thread) |
Pneumatic Connection Port | G 1/4" (BSPP) |
Cushioning Type | Pneumatic adjustable air cushioning at both ends (PPV) |
Position Sensing | Built-in Magnetic Piston (-S) for sensor switch slots |
Operating Pressure Range | 1.0 bar to 10.0 bar (0.1 MPa to 1.0 MPa / 14 to 145 PSI) |
Theoretical Force (Advance, 6 bar) | ~1,178 N |
Theoretical Force (Retract, 6 bar) | ~990 N |
Operating Temperature Range | -5 °C to +70 °C |
Cylinder Body Material | Anodized wrought aluminum alloy profile |
Piston Rod Material | High-grade chrome-plated carbon steel / Stainless steel |
Seals Material | Polyurethane (PU) / NBR |
