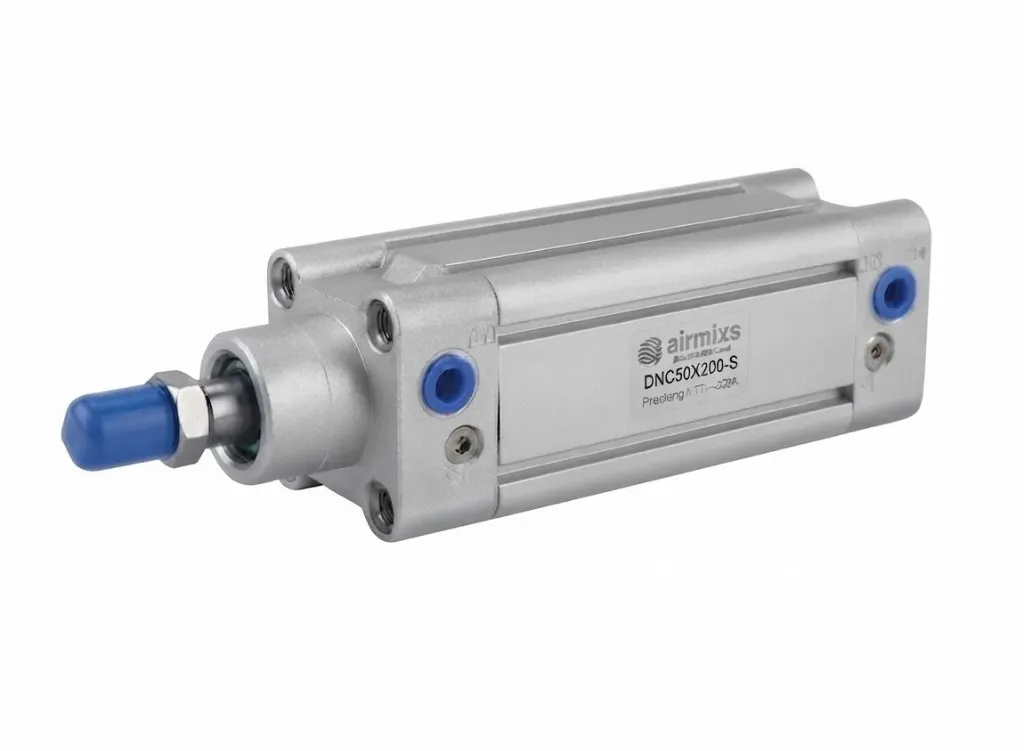

The AIRMIXS DNC-50-200-S is a heavy-duty, ISO 15552 standard pneumatic profile cylinder engineered for smooth, high-precision linear motion in automated industrial applications.Featuring a 50 mm piston bore diameter and a 200 mm stroke length, this double-acting air cylinder provides a strong, reliable force output for both extension and retraction cycles.Equipped with adjustable pneumatic end-position cushioning to minimize end-of-stroke impact and noise, it also features a integrated magnetic piston ("-S" configuration) for easy positioning via proximity switches.Built with an anodized aluminum barrel and high-strength piston rod, it delivers long service life across clamping, material handling, packaging, and general automation equipment.
Specification Parameter | Technical Data |
|---|
Brand | AIRMIXS |
Model Code | DNC50-200 S (DNC-50-200-S-A) |
Standard Compliance | ISO 15552 / ISO 6431 / VDMA 24562 |
Action Type | Double-acting, Single rod |
Piston Bore Diameter | 50 mm |
Stroke Length | 200 mm |
Piston Rod Thread | M16 x 1.5 (Male thread) |
Pneumatic Connection Port | G 1/4" (BSPP) |
Cushioning Type | Pneumatic adjustable cushioning at both ends |
Position Sensing | Built-in Magnetic Piston (-S) for proximity switch slots |
Operating Pressure Range | 1.0 bar to 10.0 bar (0.1 MPa to 1.0 MPa / 14 to 145 PSI) |
Theoretical Force (Advance, 6 bar) | ~1,178 N |
Theoretical Force (Retract, 6 bar) | ~990 N |
Operating Temperature Range | 5 °C to +70 °C (Standard NBR/PU seals) |
Cylinder Body Material | Anodized wrought aluminum alloy profile |
Piston Rod Material | High-grade carbon steel / Stainless steel |
Seals Material | Polyurethane (PU) / NBR |
