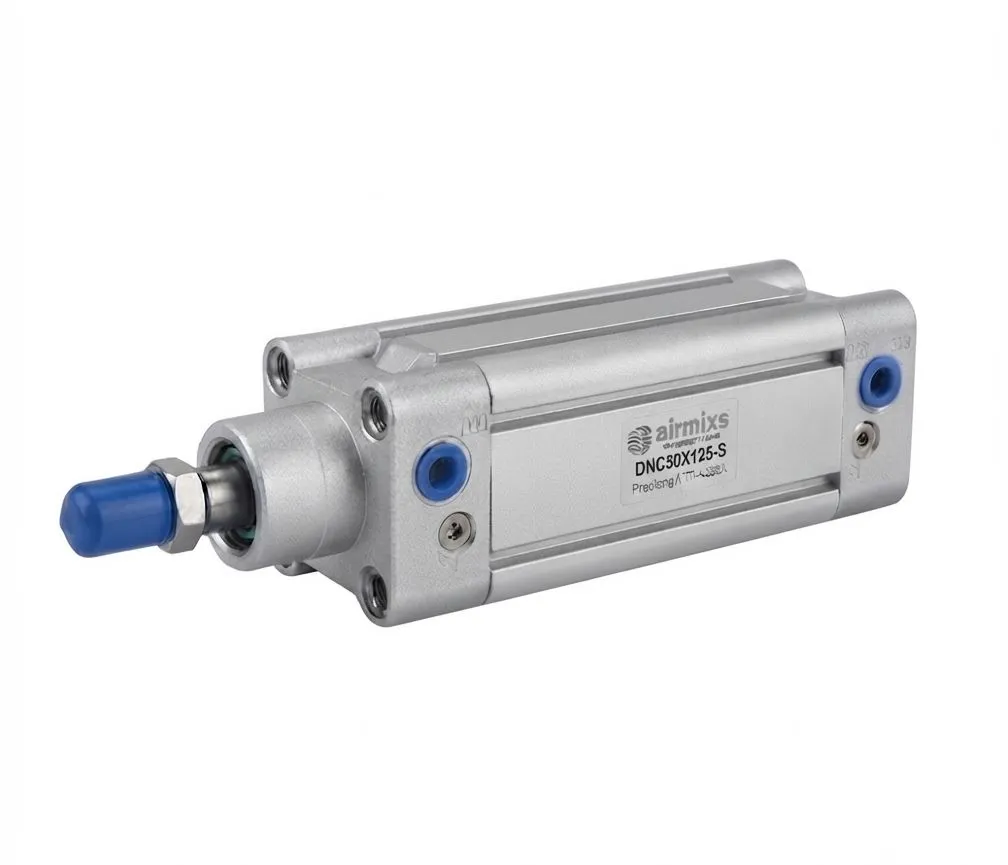

The DNC50-125-S is a robust, double-acting standard pneumatic air cylinder engineered for high-performance industrial automation and linear positioning. Built to ISO 15552/VDMA 24562 compliance standards, this 50mm bore unit features adjustable pneumatic cushioning on both ends to smoothly manage high load impacts and minimize operational noise. Designed with a clean anodized aluminum profile barrel and a durable hard-chrome-plated steel piston rod, it comes equipped with a built-in magnetic ring for seamless proximity sensor integration.
Specification | Details |
|---|
Model / Series | DNC50-125-S (DNC Series ISO Standard Cylinder) |
Bore Diameter | 50 mm |
Stroke Length | 125 mm |
Action Type | Double Acting |
Fluid | Compressed Air (Filtered, lubricated or non-lubricated) |
Operating Pressure Range | 0.06 to 1.2 MPa (0.6 to 12 bar / 8.7 to 174 PSI) |
Operating Temperature | -20°C to 80°C (-4°F to 176°F) |
Port Size | G1/4" |
Piston Rod Thread | M16x1.5 |
Cushion Type | Adjustable Pneumatic Cushioning on both ends |
Position Sensing | Standard built-in magnet for reed/electronic sensors |
Body Material | Anodized Aluminum Alloy |
Piston Rod Material | Hard Chrome Plated Steel |
